OVERVIEW

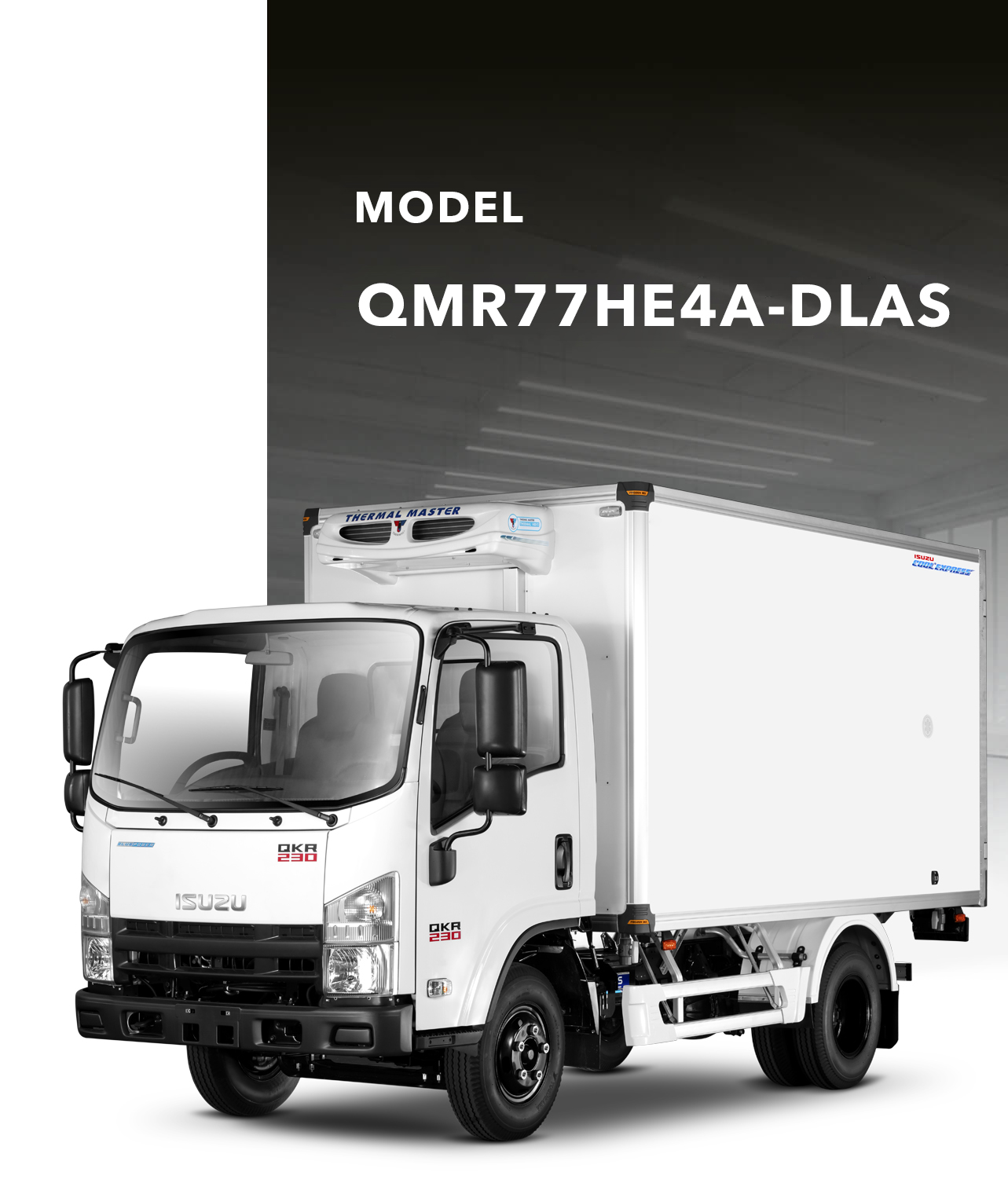

model ISUZU Truck - QMR77HE4A - QUYEN AUTO.DLAS

Gross vehicle mass 4,990 (kg)
Payload 1,990 (kg)
Dimension 6,240 x 1,950 x 2,850 (mm)
Max. power 105 (77) / 3,200 (Ps(kW) / rpm)
Emission Euro 4
Suggested retail price 800,181,818 VND

* Applied for cabin chassis ans freezer body. (Price is included VAT)

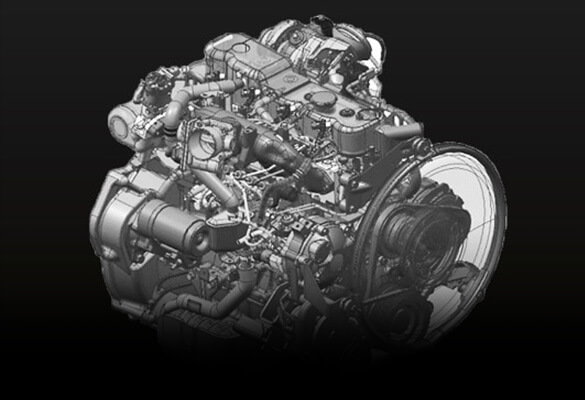

ENGINE

Common rail engine, turbo intercooler, Blue Power Technology

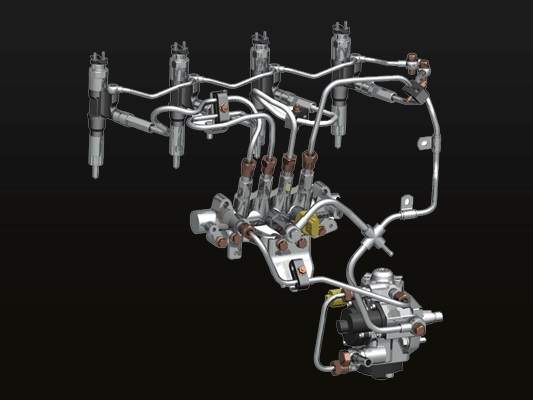

Hi-pressure common rail injection system

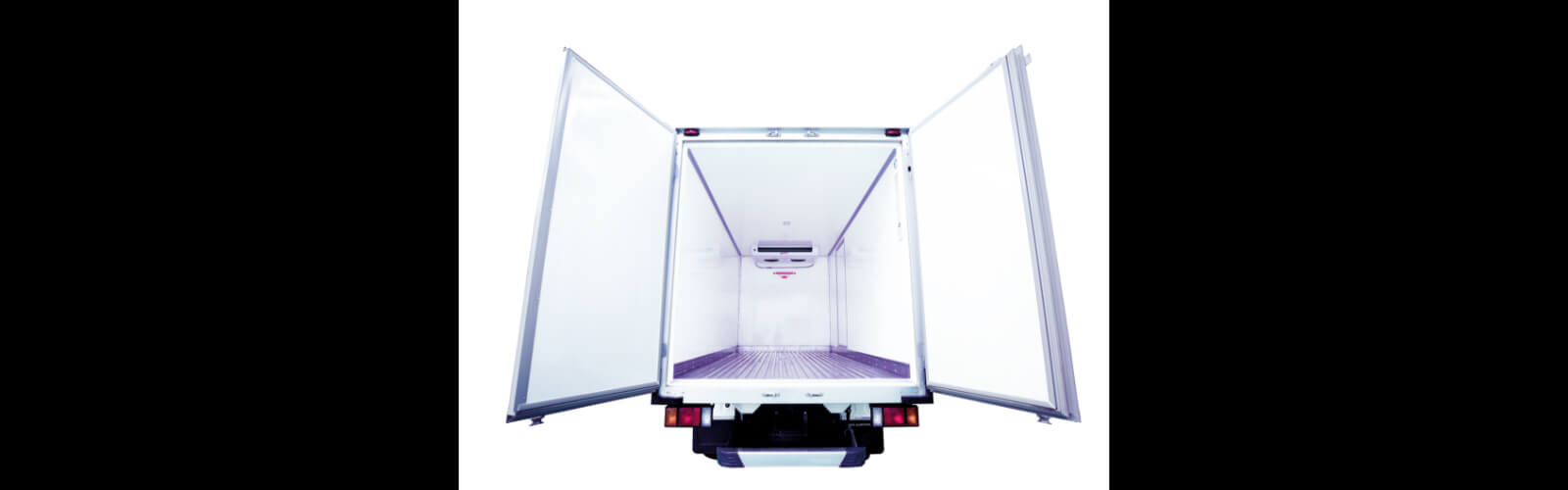

FREEZER BODY

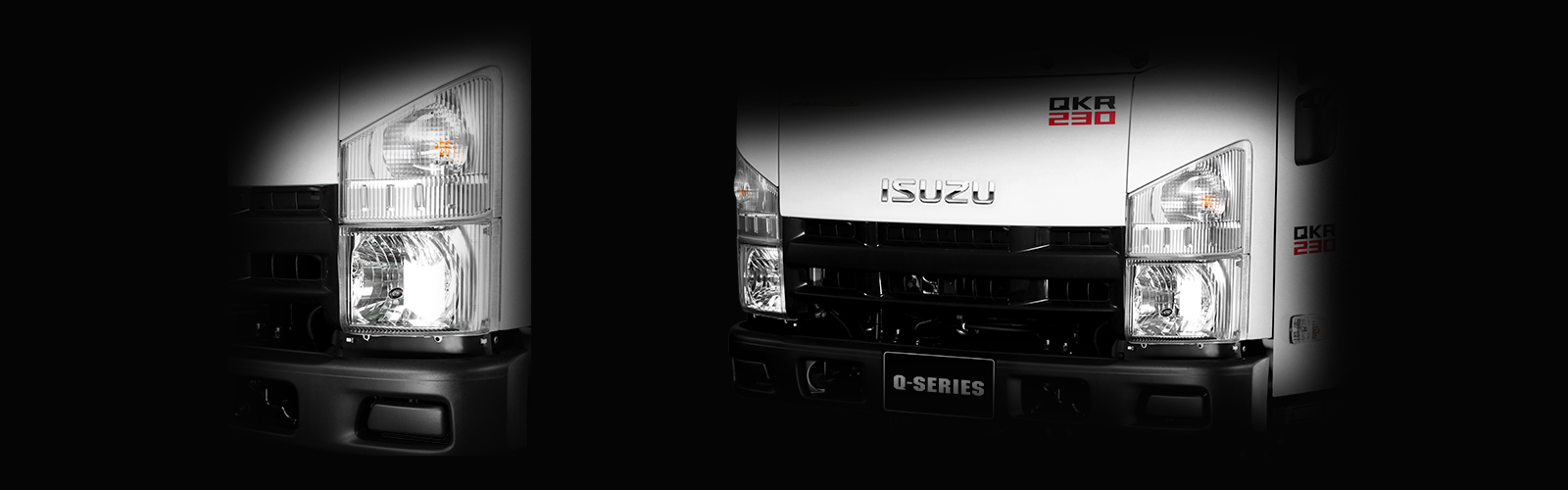

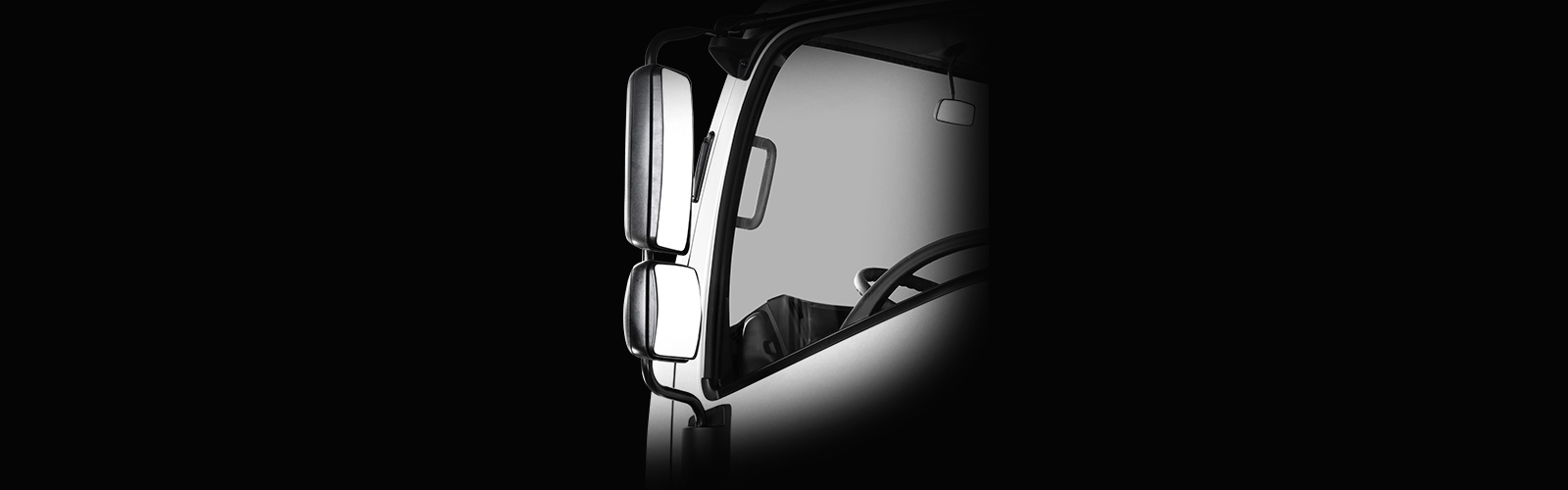

Exterior

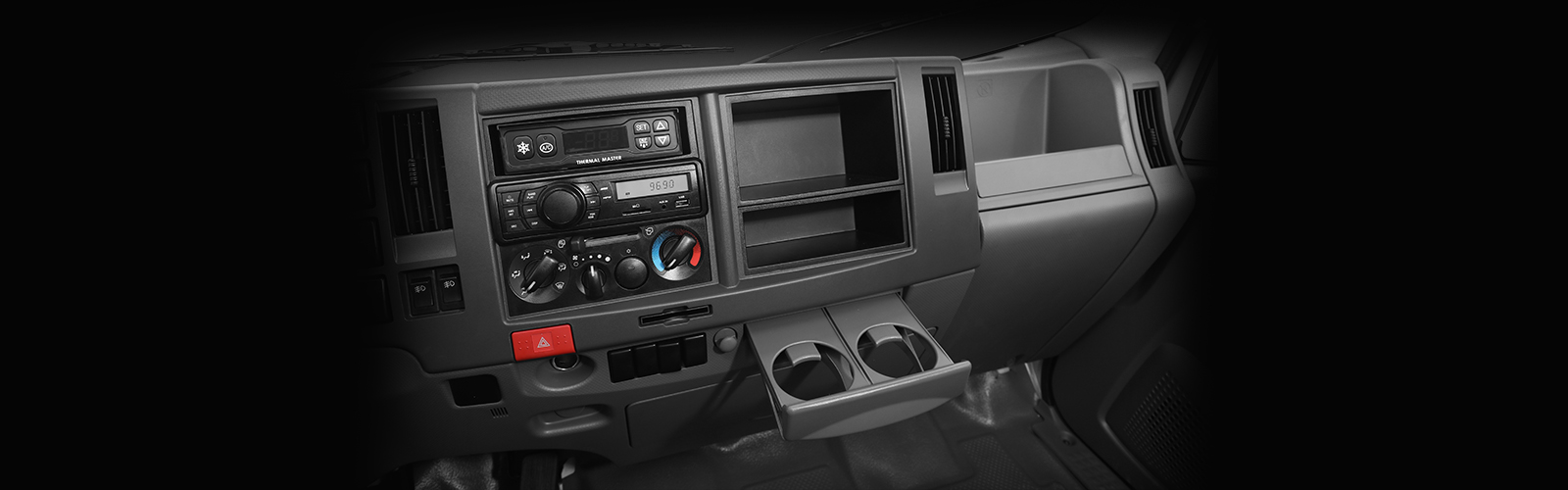

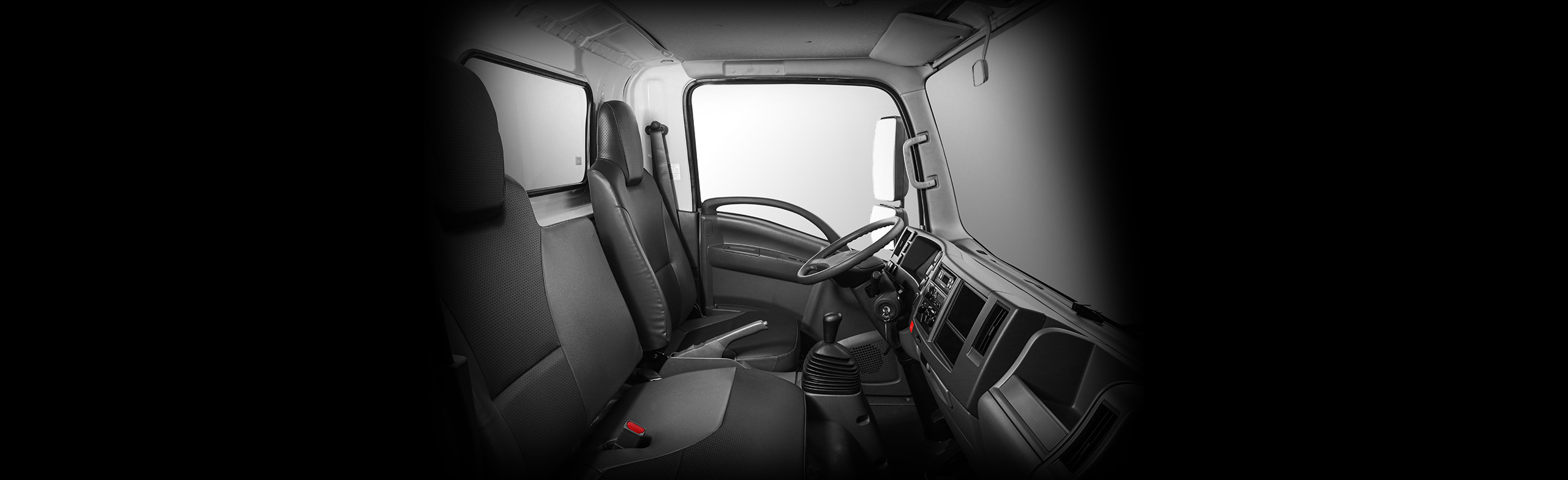

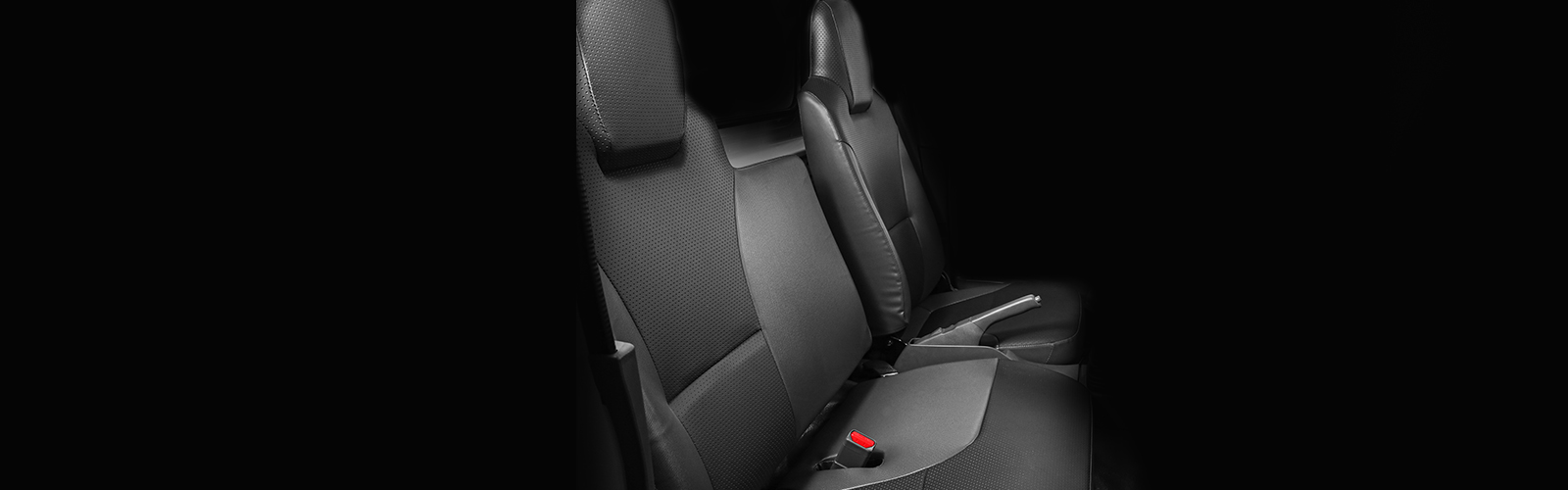

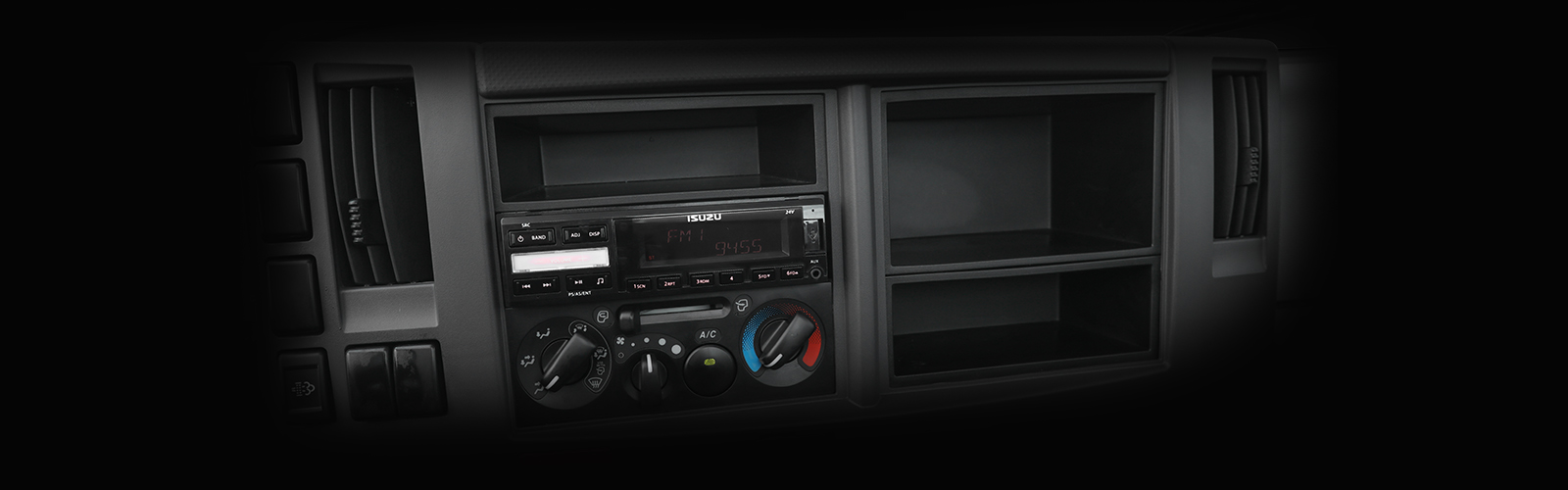

Interior

specification

MASS
DIMENSION
ENGINE & TRANSMISSION
BASIC SYSTEMS
BODY STRUCTURE
ACCESSORIES
Refrigeration systems
Gross vehicle mass Kg 4,990
Kerb weight Kg 2,805
Payload Kg 1,990
Number of seats Person 3
Overall Dimension (OAL x OW X OH) mm 6,240 x 1,950 x 2,850
Body’s external (LxWxH) mm 4,450 x 1,950 x 1,950
Body’s internal (LxWxH) mm 4,270 x 1,810 x 1,770
Model 4JH1E4NC
Systems Common rail, turbo-intercooler, EGR & DOC
Emission EURO 4
Max. power Ps(kW) / rpm 105 (77) / 3,200
Max. torque N.m(kgf.m) / rpm 230 (23) / 1,400 ~ 3,200
Transmission N.m(kgf.m) / rpm MSB5S
5 Forward & 1 Reverse
Steering system Recirculating ball with hydraulic assisted
Suspension system front – rear Dependent, leafspring, shock absorber
Brake system front – rear Drum, hydraulic with vacuum servo assistance, dual circuit
Tire size front – rear 7.00 – 15 12PR
Generator 14V-60A/ 14V-90A
Interior and exterior panel skin Imported FRP-GRP

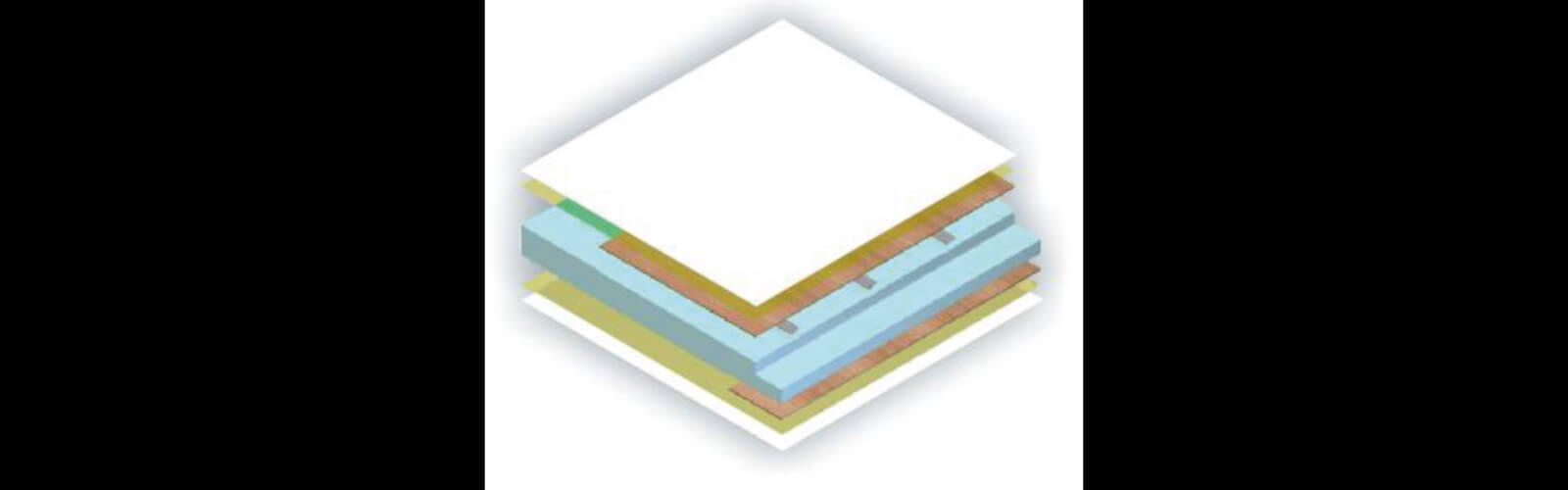

Panel Insulation XPS
Panel thickness Side wall: 65 mm
Front wall: 65 mm
Rear door: 65 mm
Roof wall: 80 mm
Floor panel: 85 mm

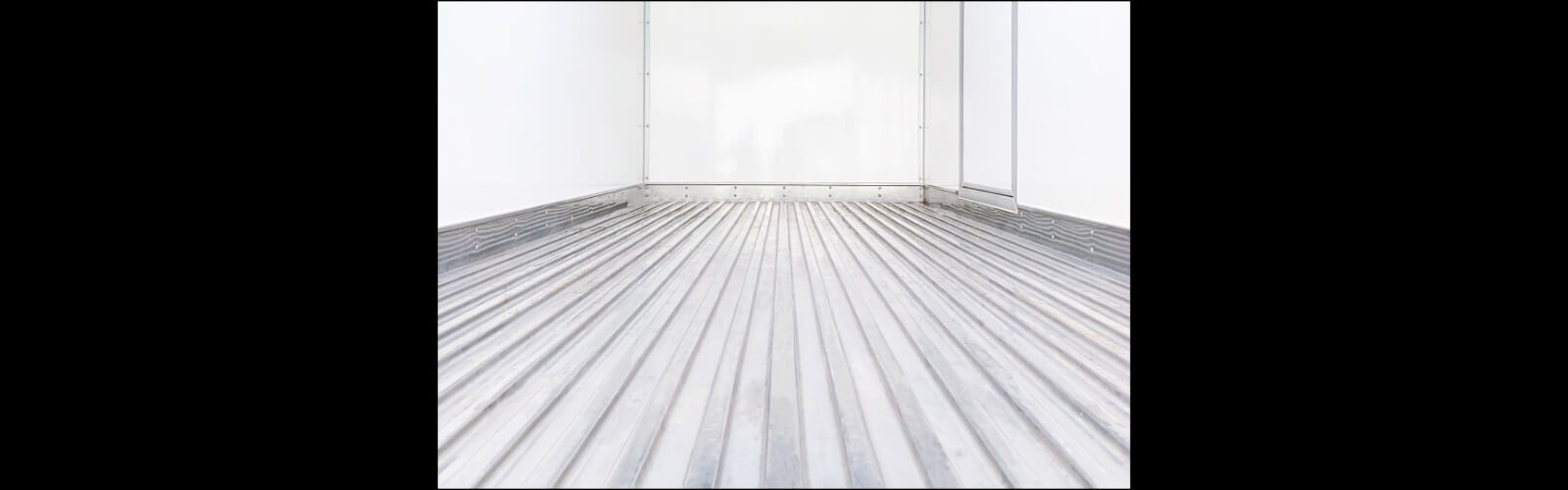

Floor Corrugated 304 stainless steel

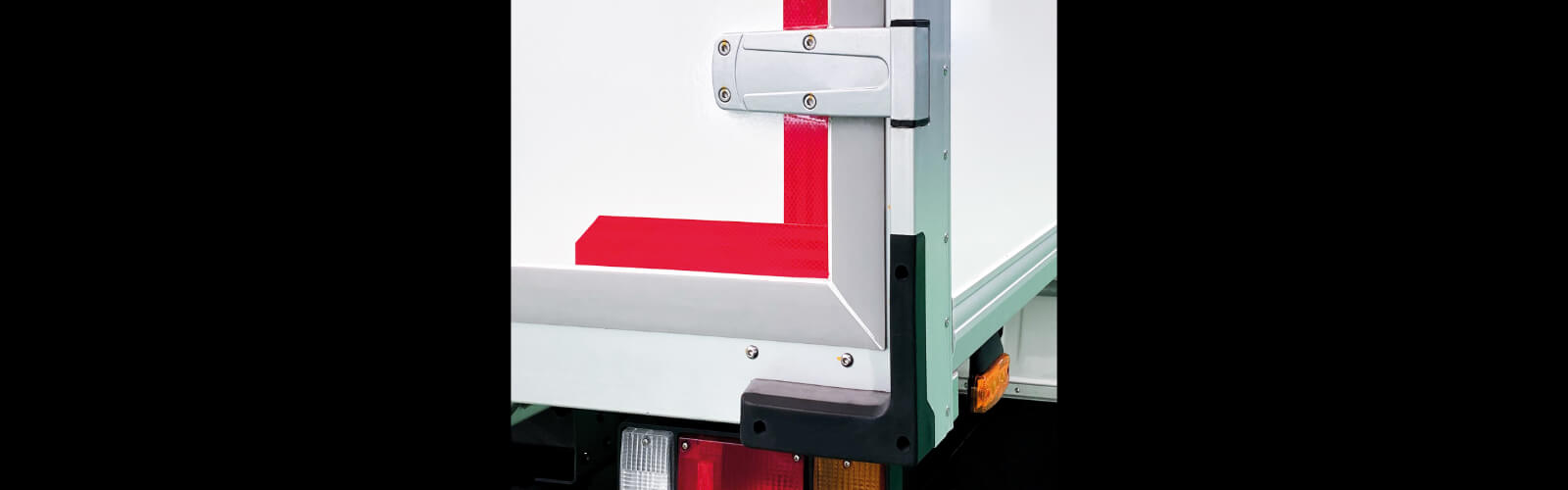

Rear door frame Alloy Aluminum
Side door Standard

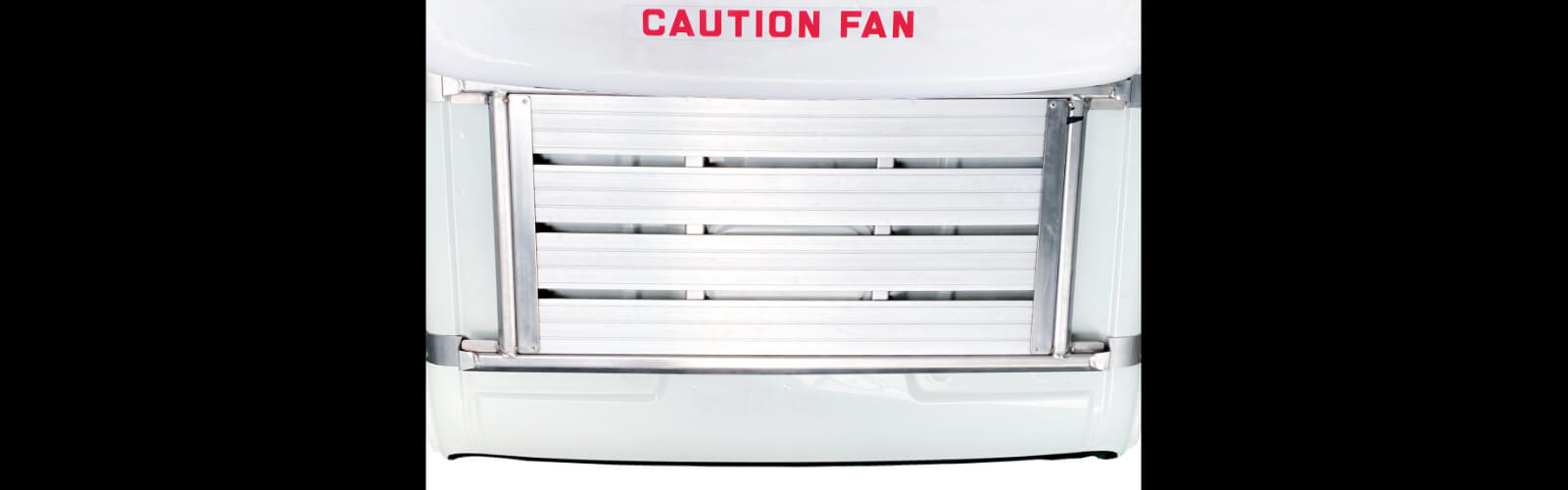

Rack Cab Guard & Ladder Standard
304-Stainless steel

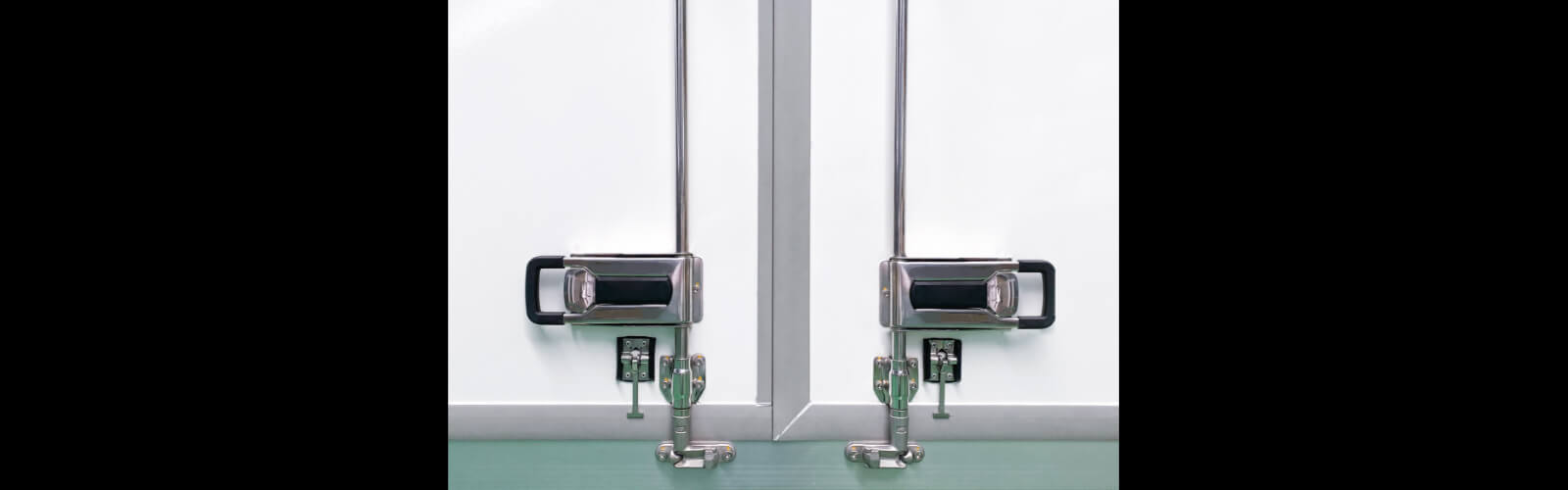

Door handle 304-Stainless steel

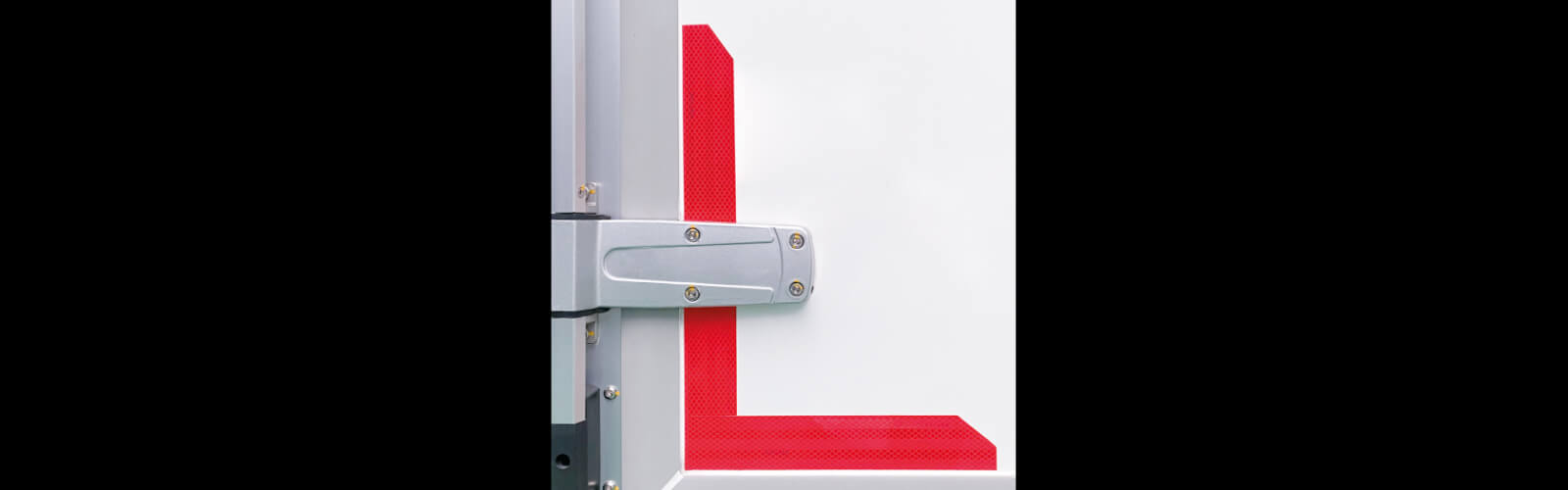

Hinges Aluminium
Profiles (top, bottom, front) Aluminium

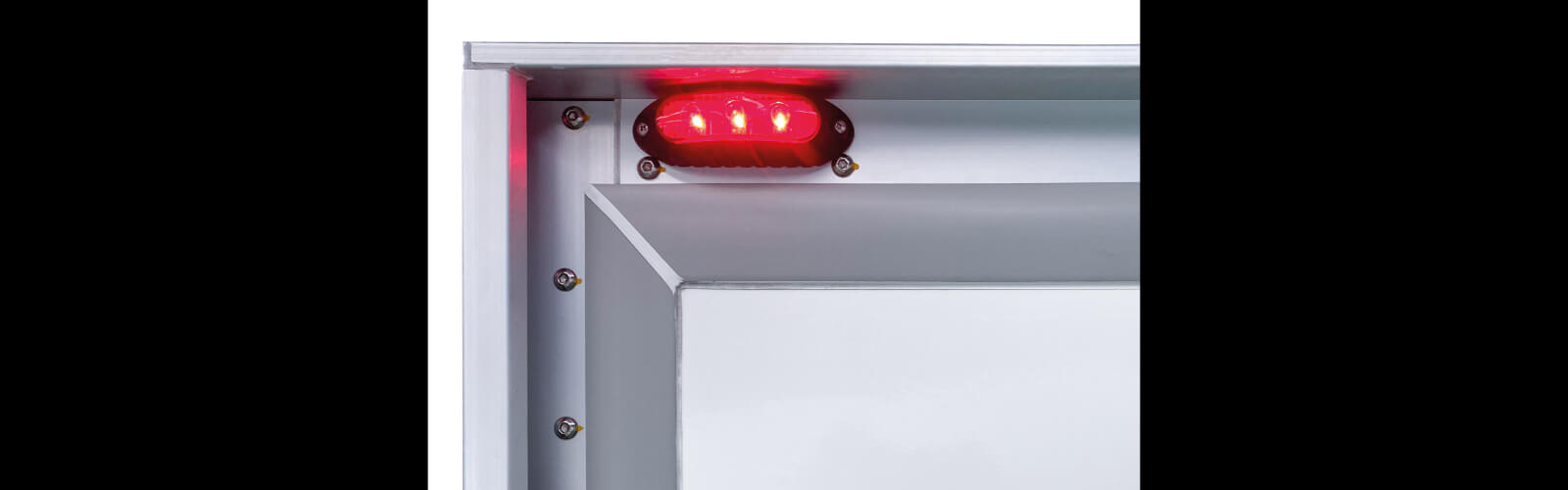

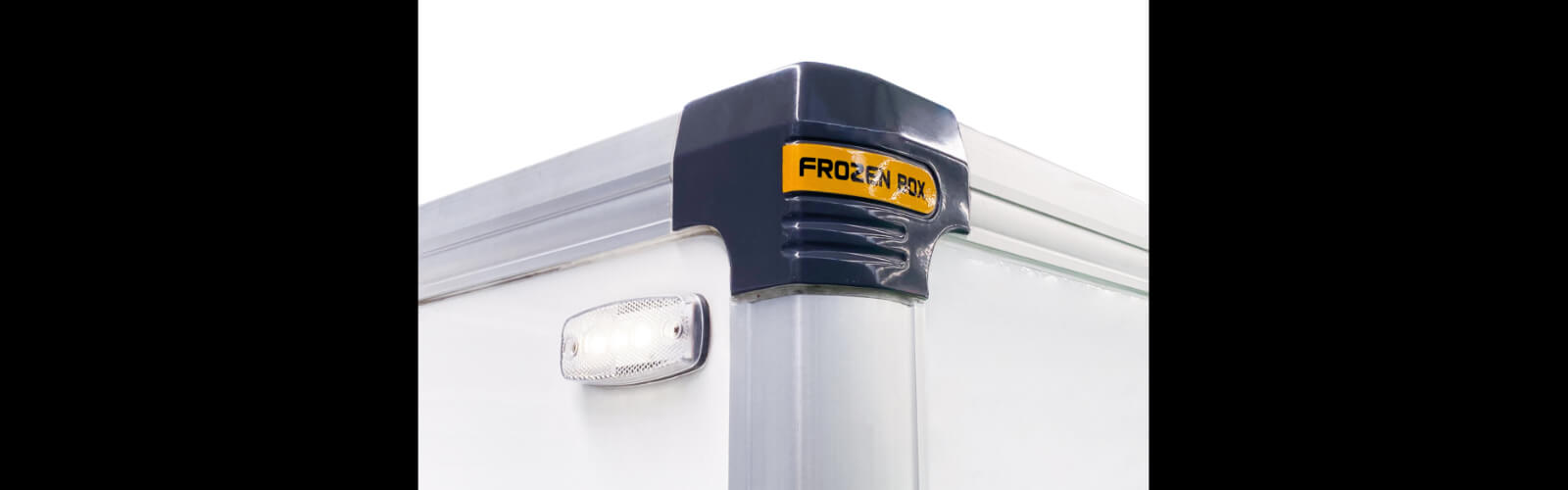

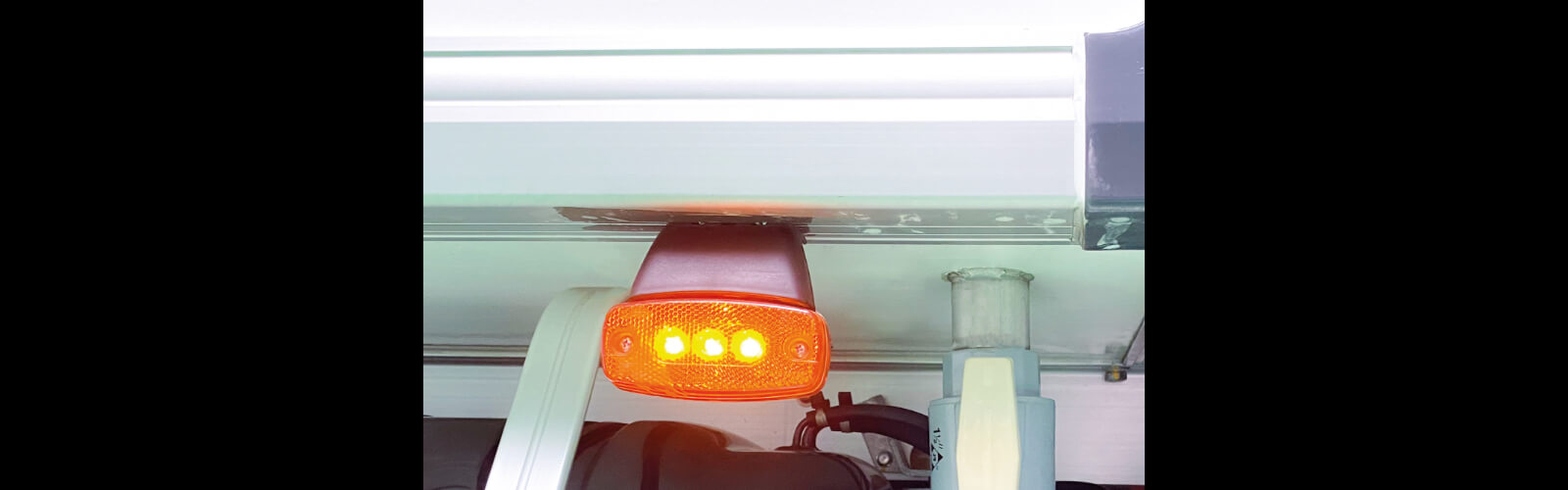

Corner-lights 04 lights

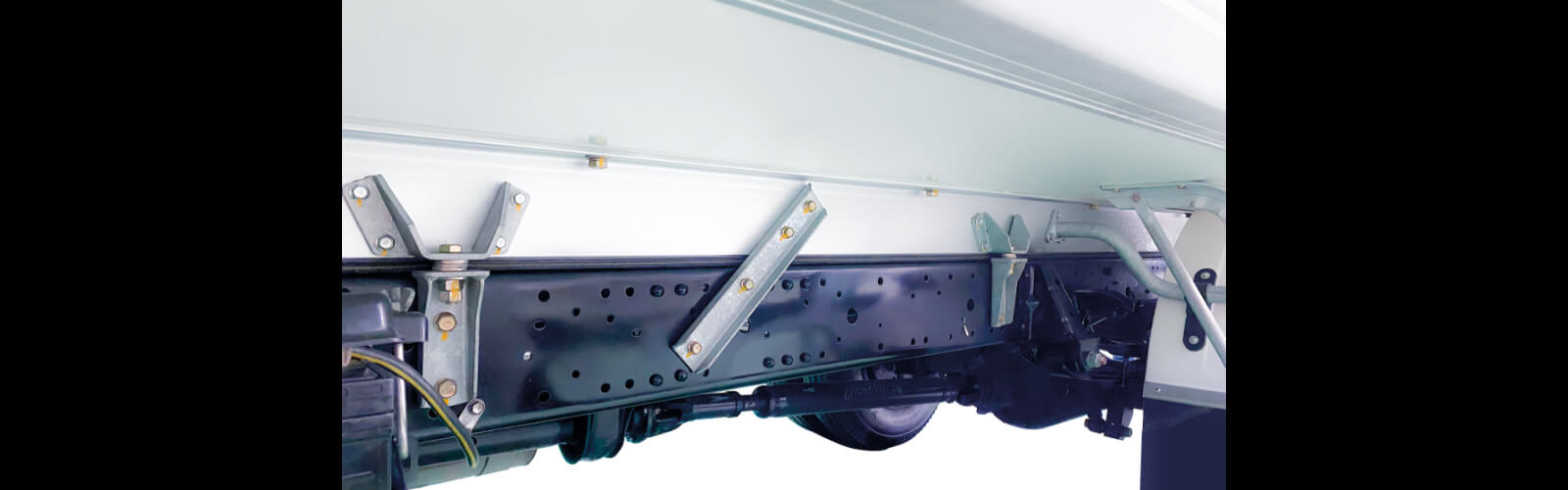

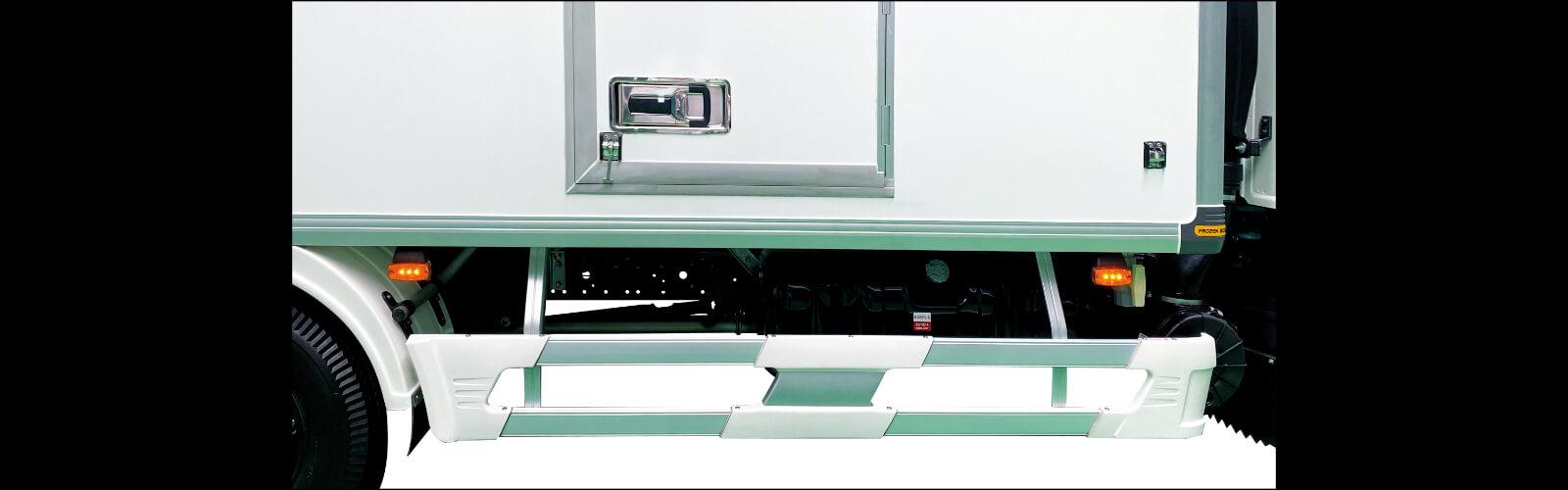

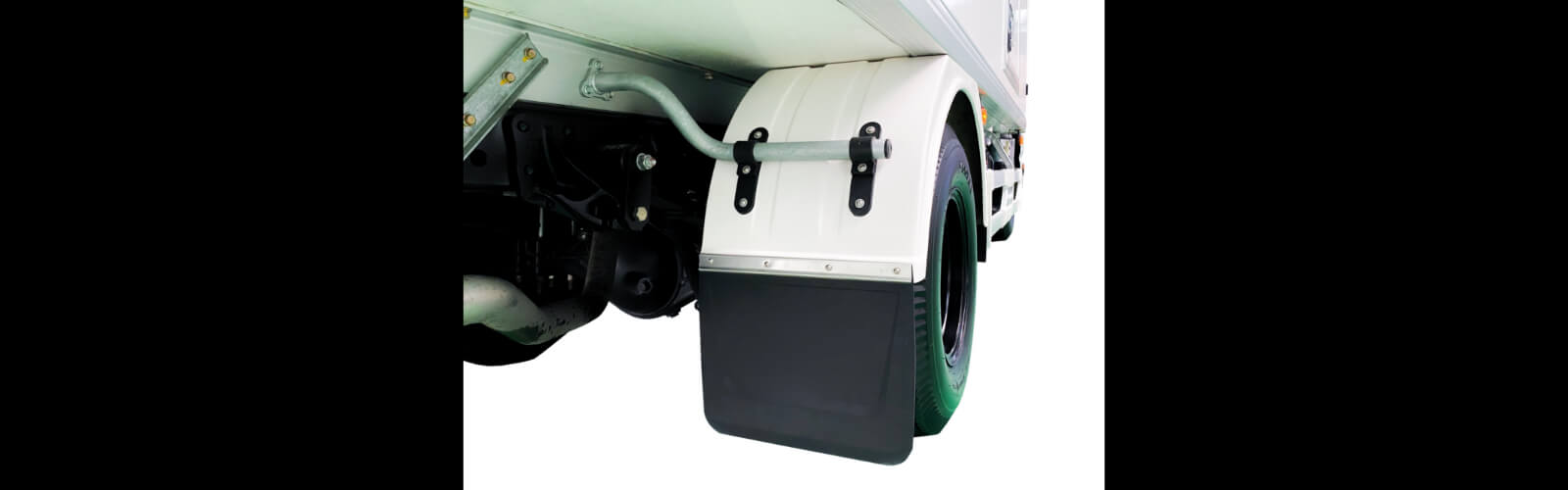

Mudguard and side fender Standard

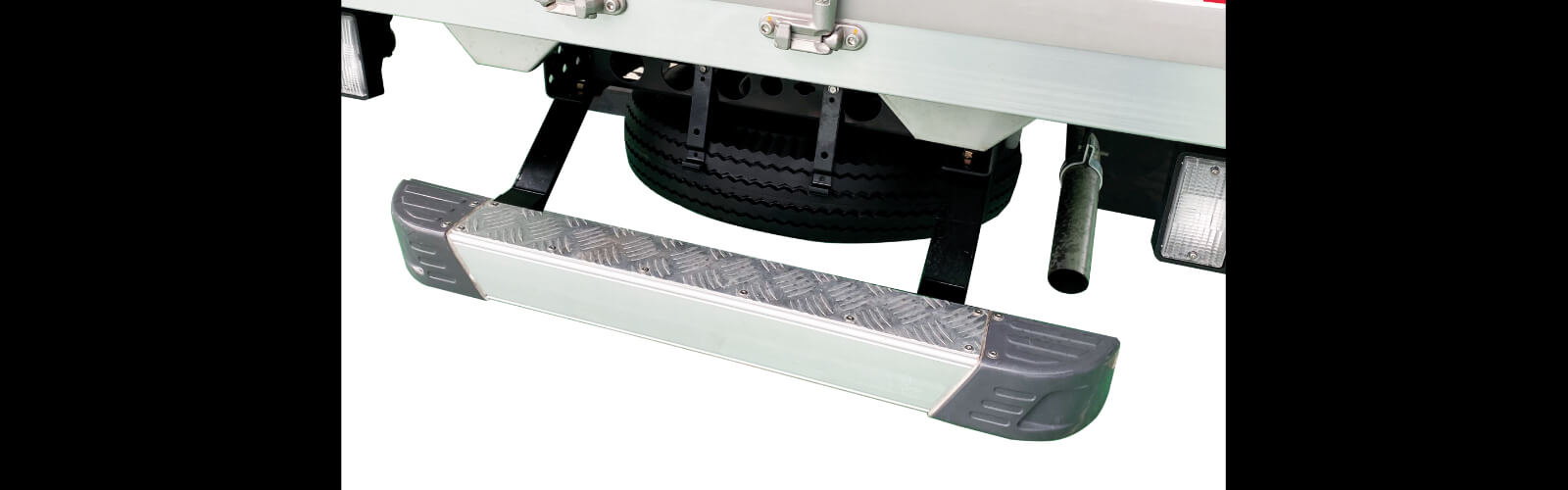

Rear step Standard

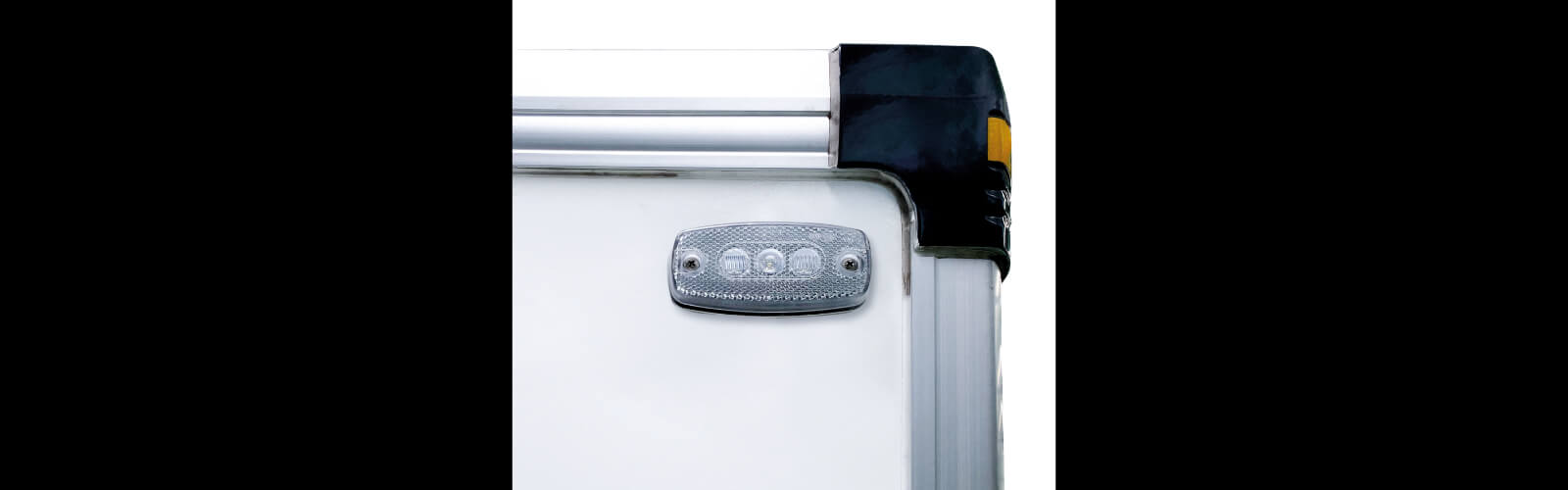

Side LED lights Standard (06 pcs)
Ceiling light Standard

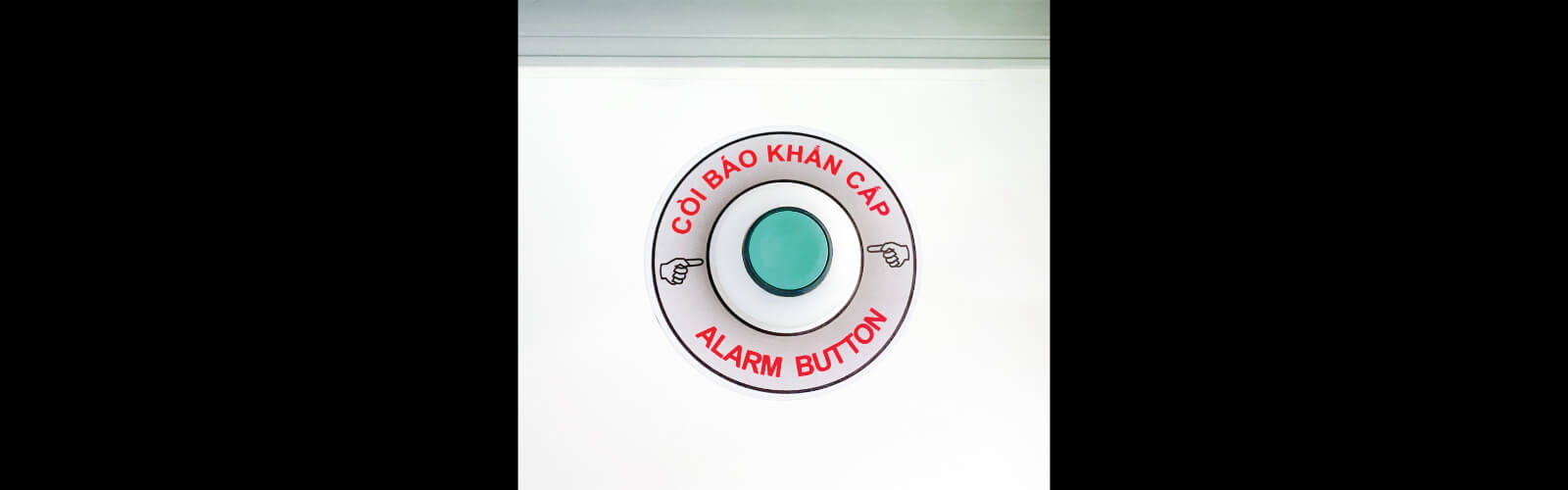

Warning buzzer Standard

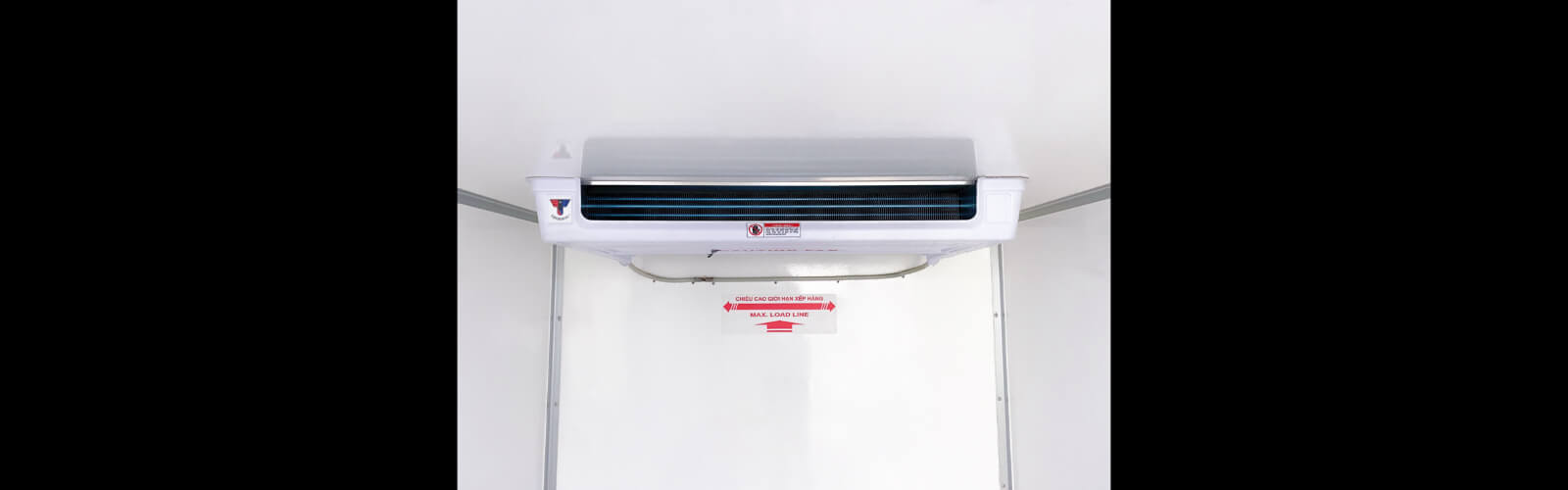

Refrigeration unit Thermal Master T-2500 (Korea)
Power 2,600 Walt
Gas type R404a
Temperature -18°C

*Specifications and equipment are subject to change without prior notice
