OVERVIEW

model ISUZU TRUCK - QKR - QLR77FE4 - QUYEN AUTO.DLAS

Gross vehicle mass 4,990 (kg)
Payload 2,200 (kg)
Overall Dimension 5,490 x 1,950 x 2,850 (mm)
Max. power 105 (77) / 3,200 (Ps(kW) / rpm)
Emission Euro 4
Manufacturers Name Isuzu Vietnam Co., Ltd
Manufacturers Address 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City
Origin Vietnam
Certification number of approval (TA) 0009/VAQ09 – 01/22 – 00
Suggested retail price 709,854,545

* Applied for cabin chassis and freezer body. (Price is included VAT)

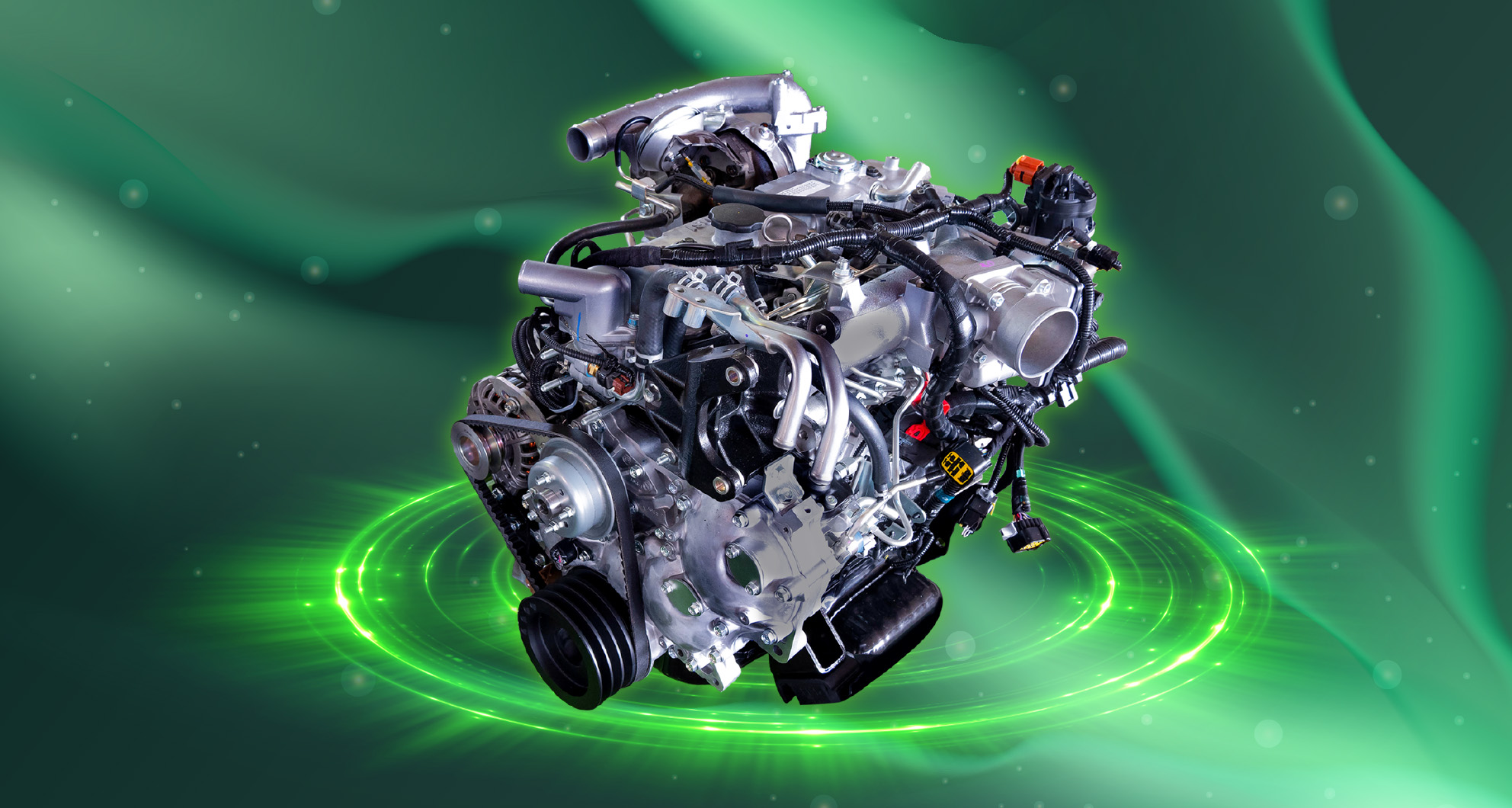

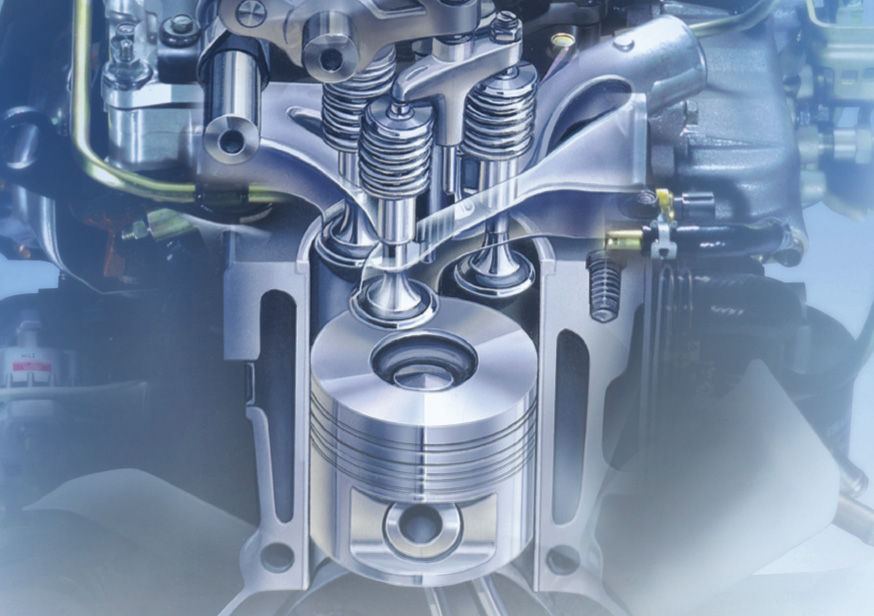

ENGINE

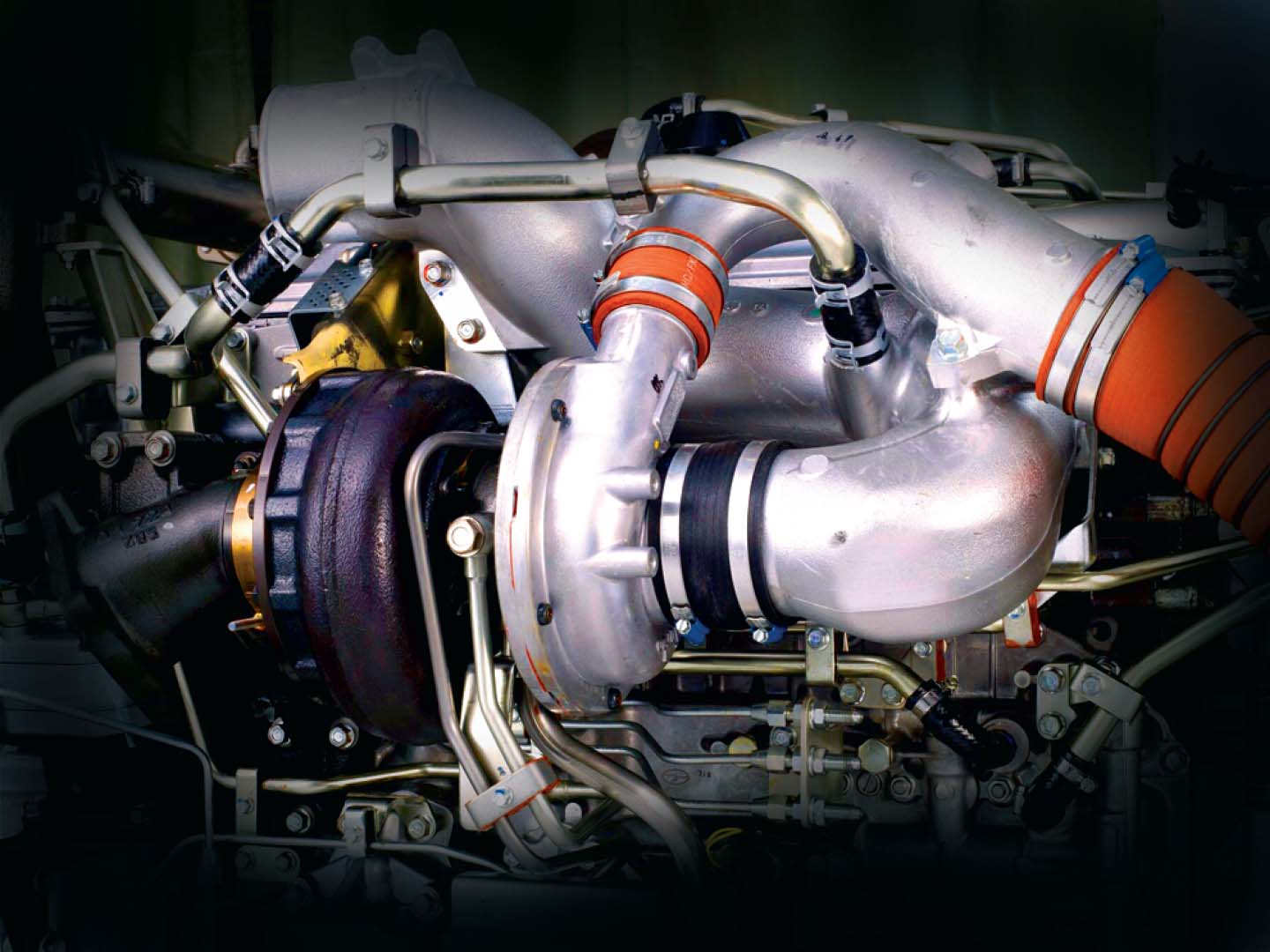

Common rail engine, turbo intercooler, Blue Power Technology

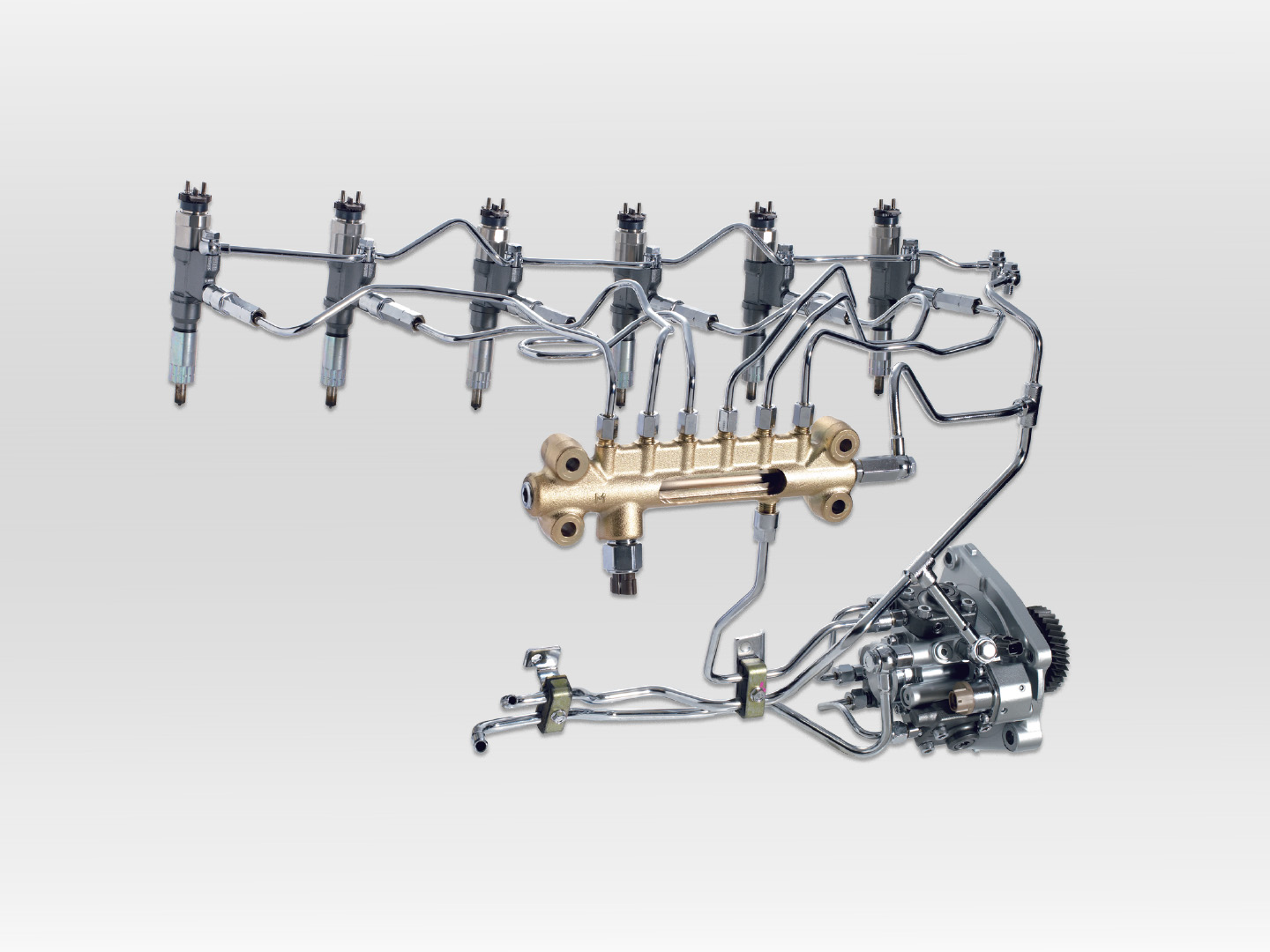

Hi-pressure common rail injection system

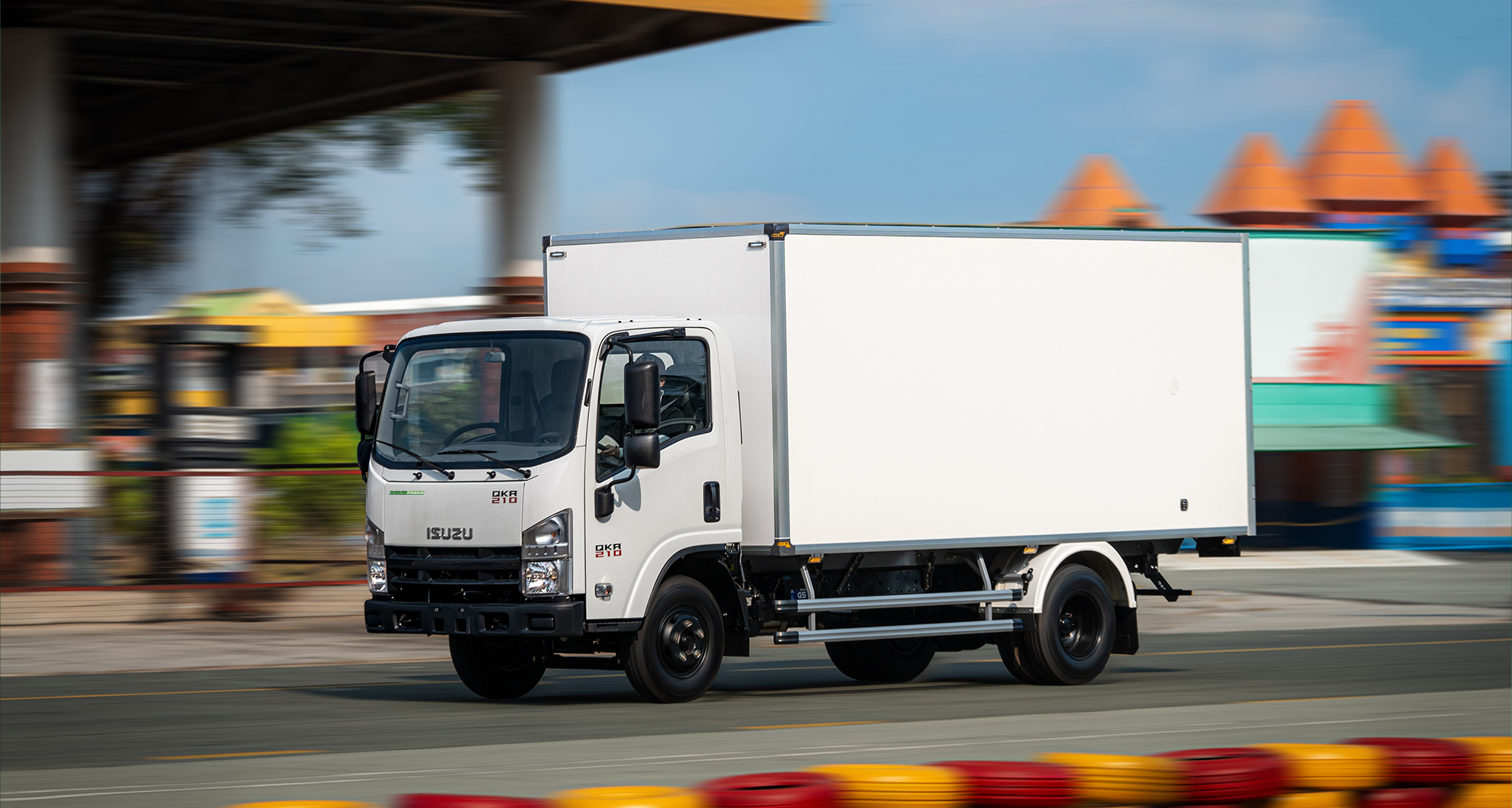

FREEZER BODY

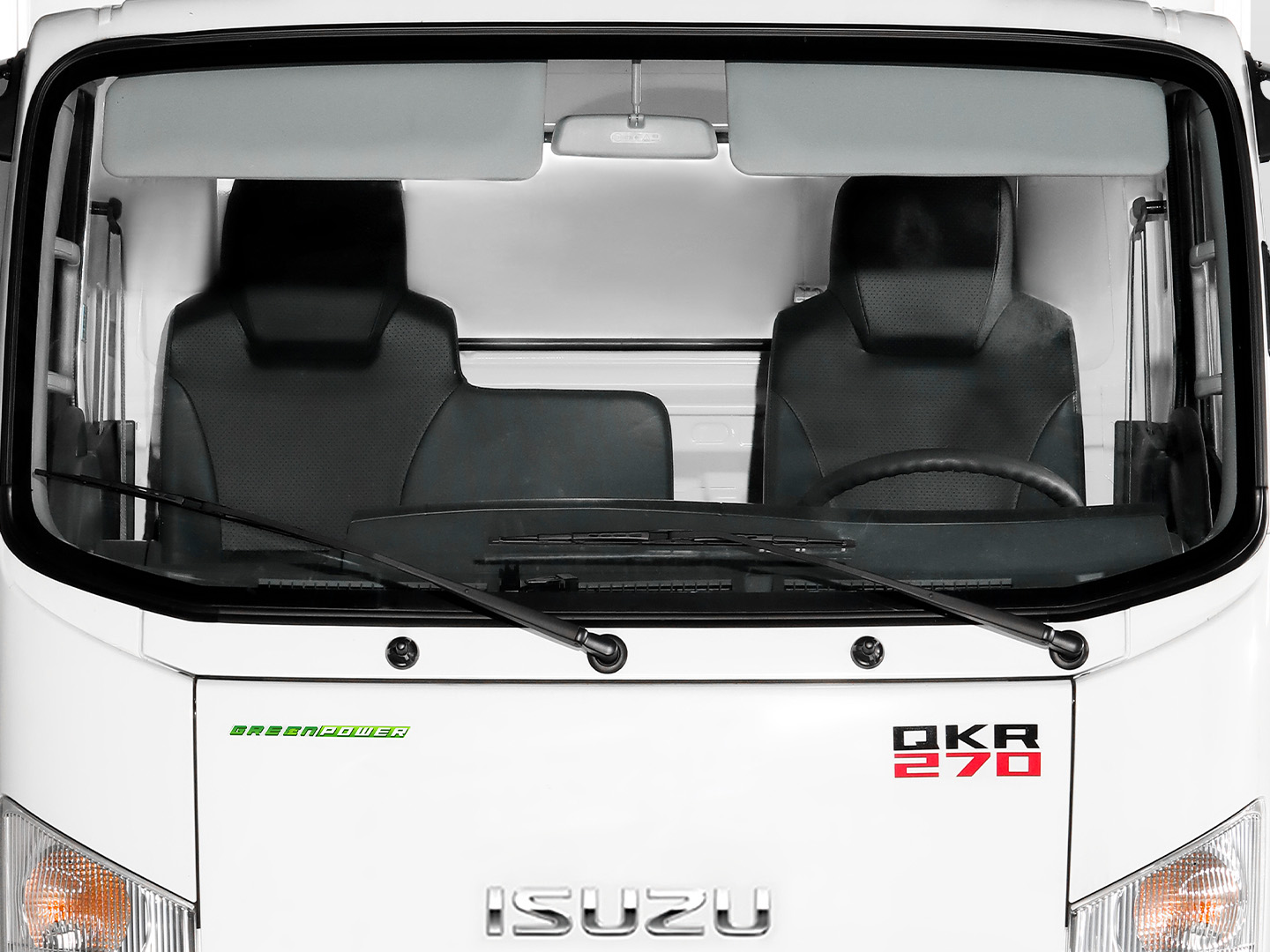

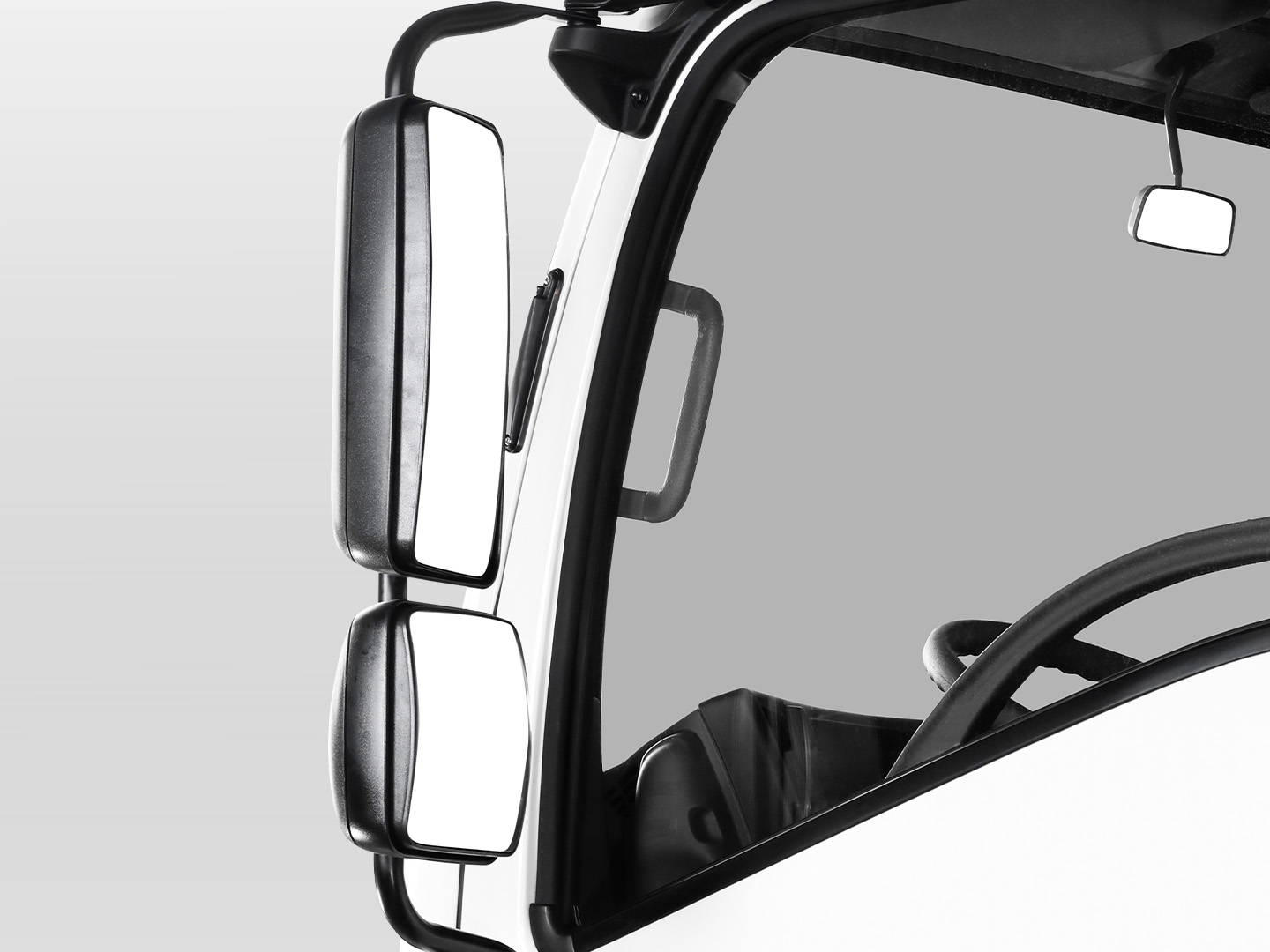

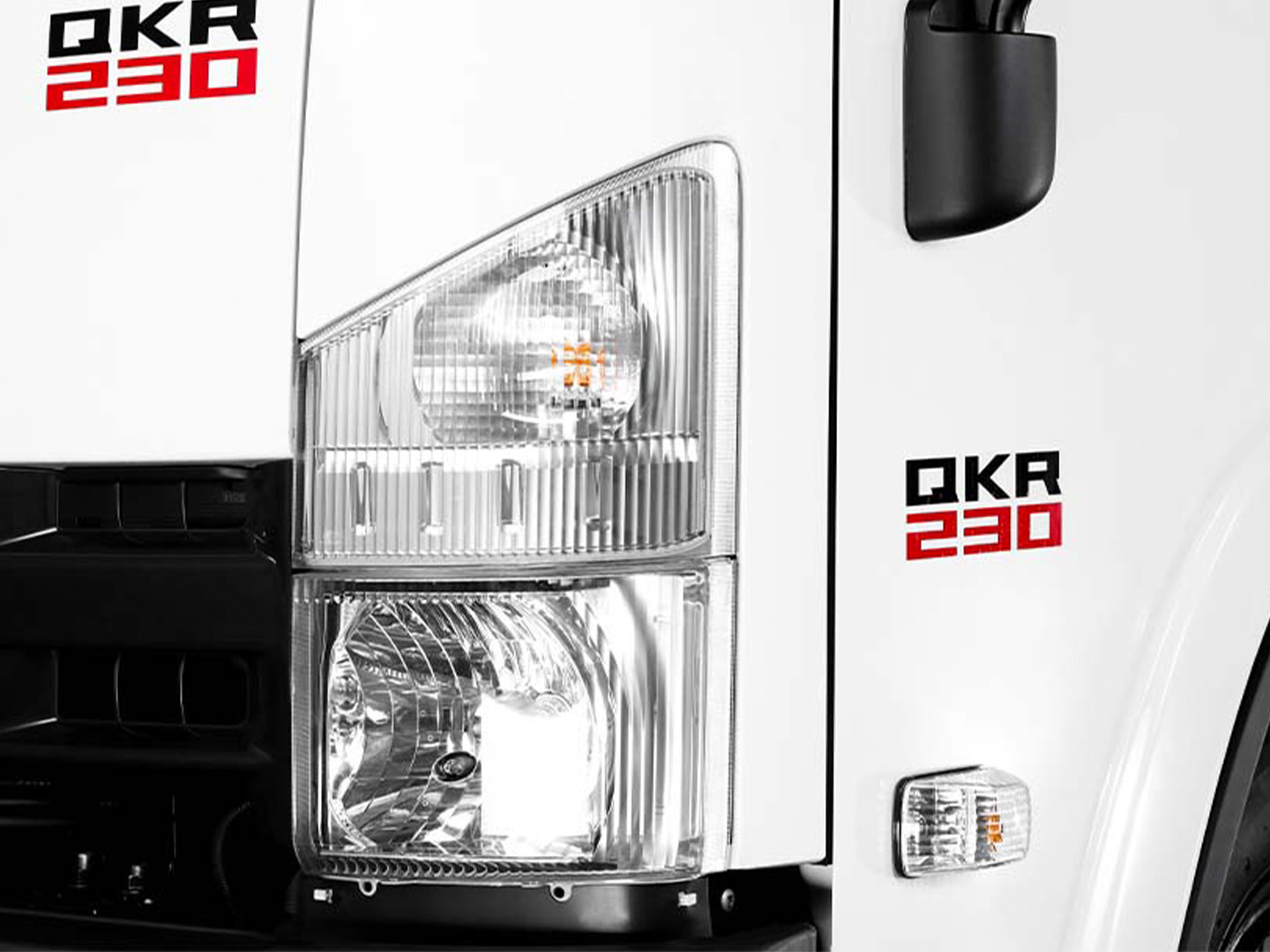

Exterior

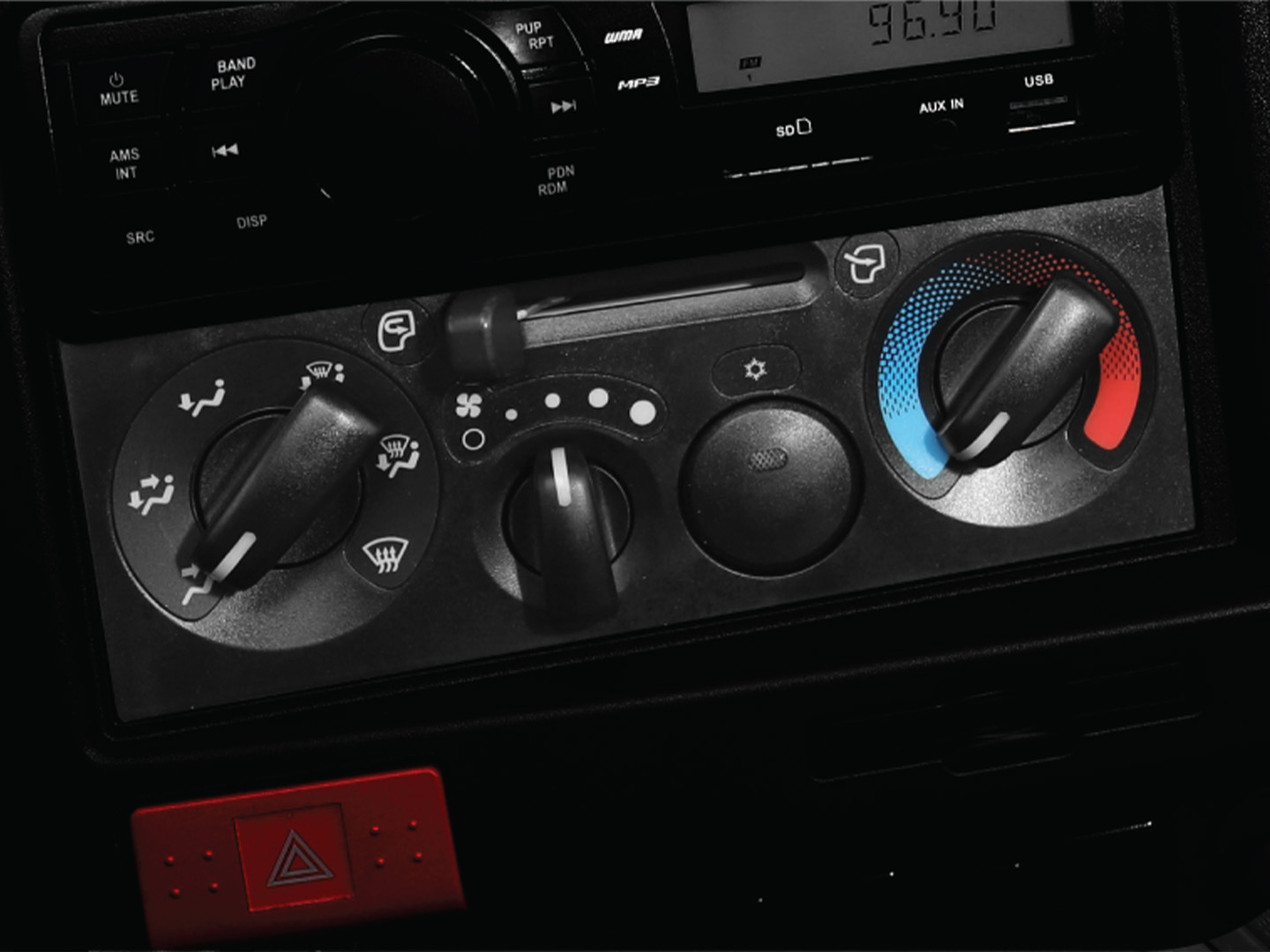

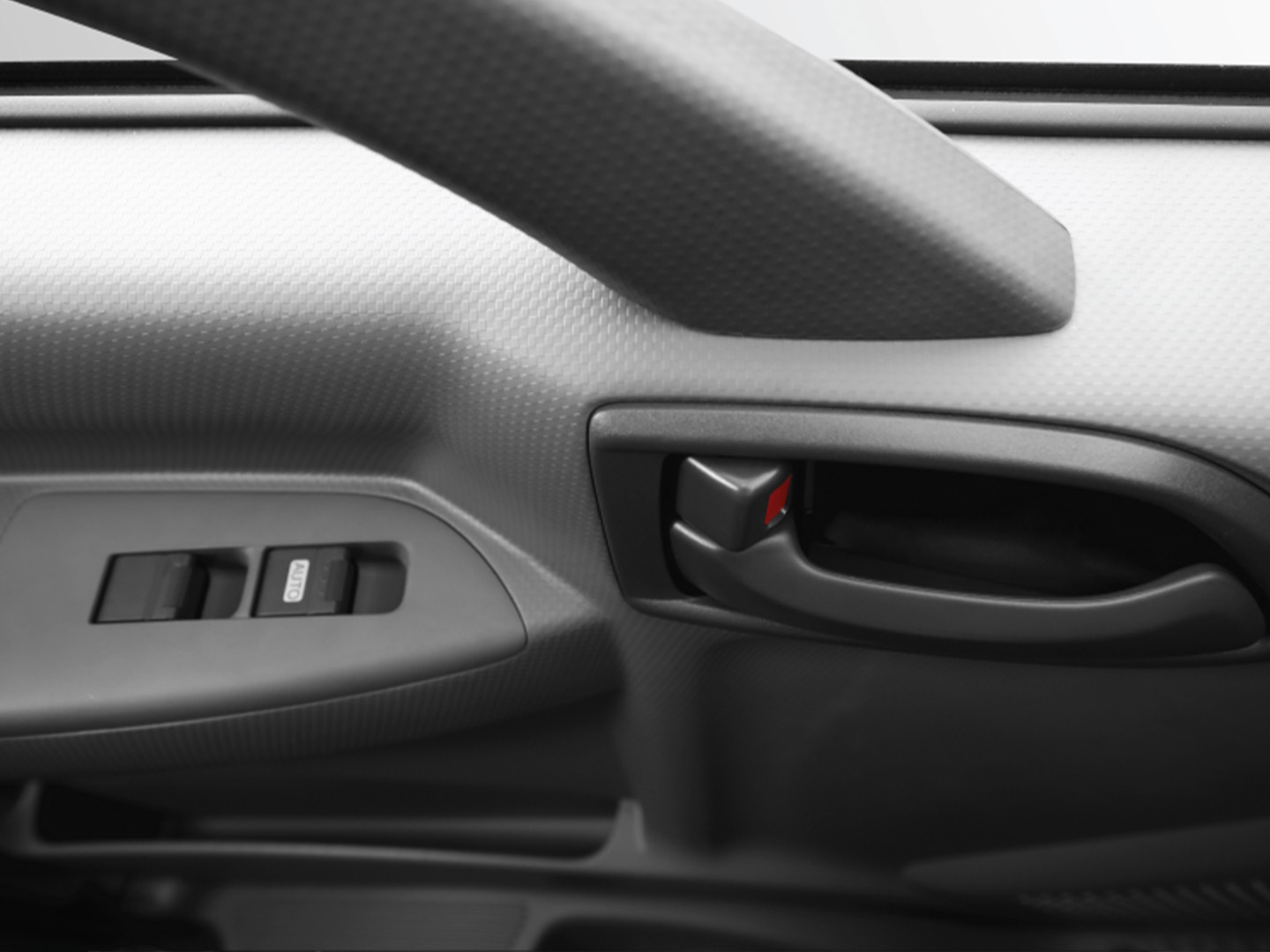

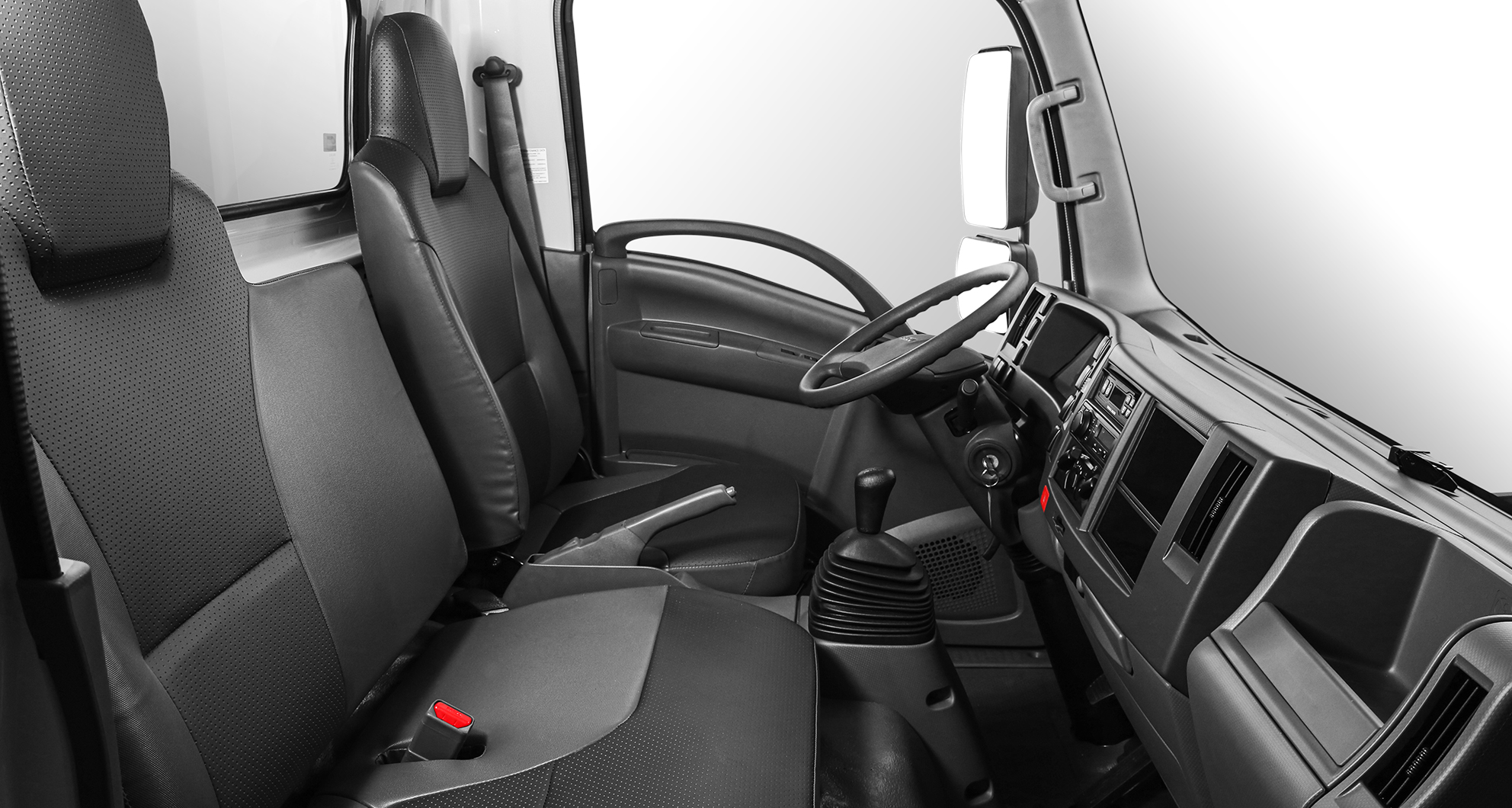

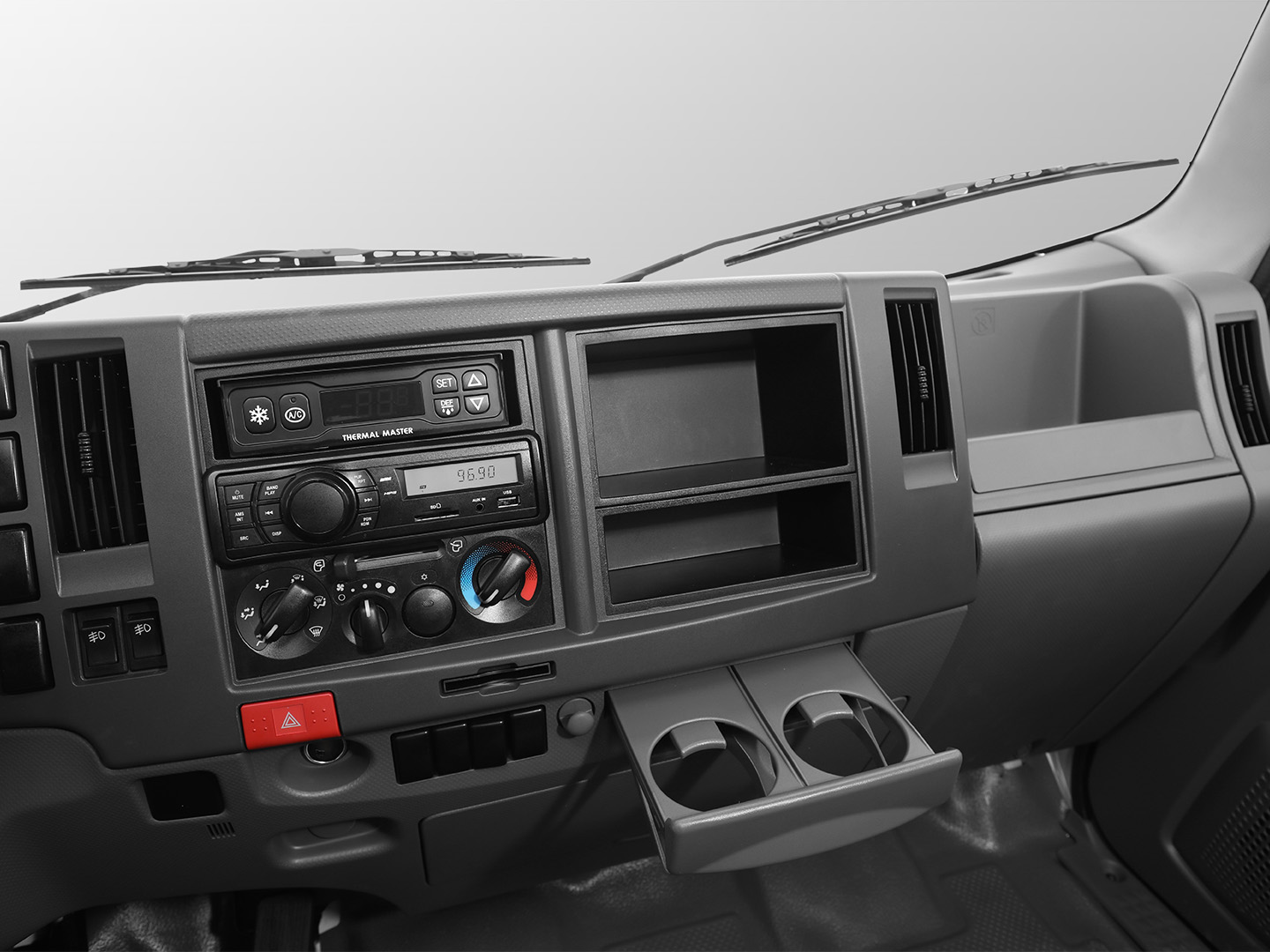

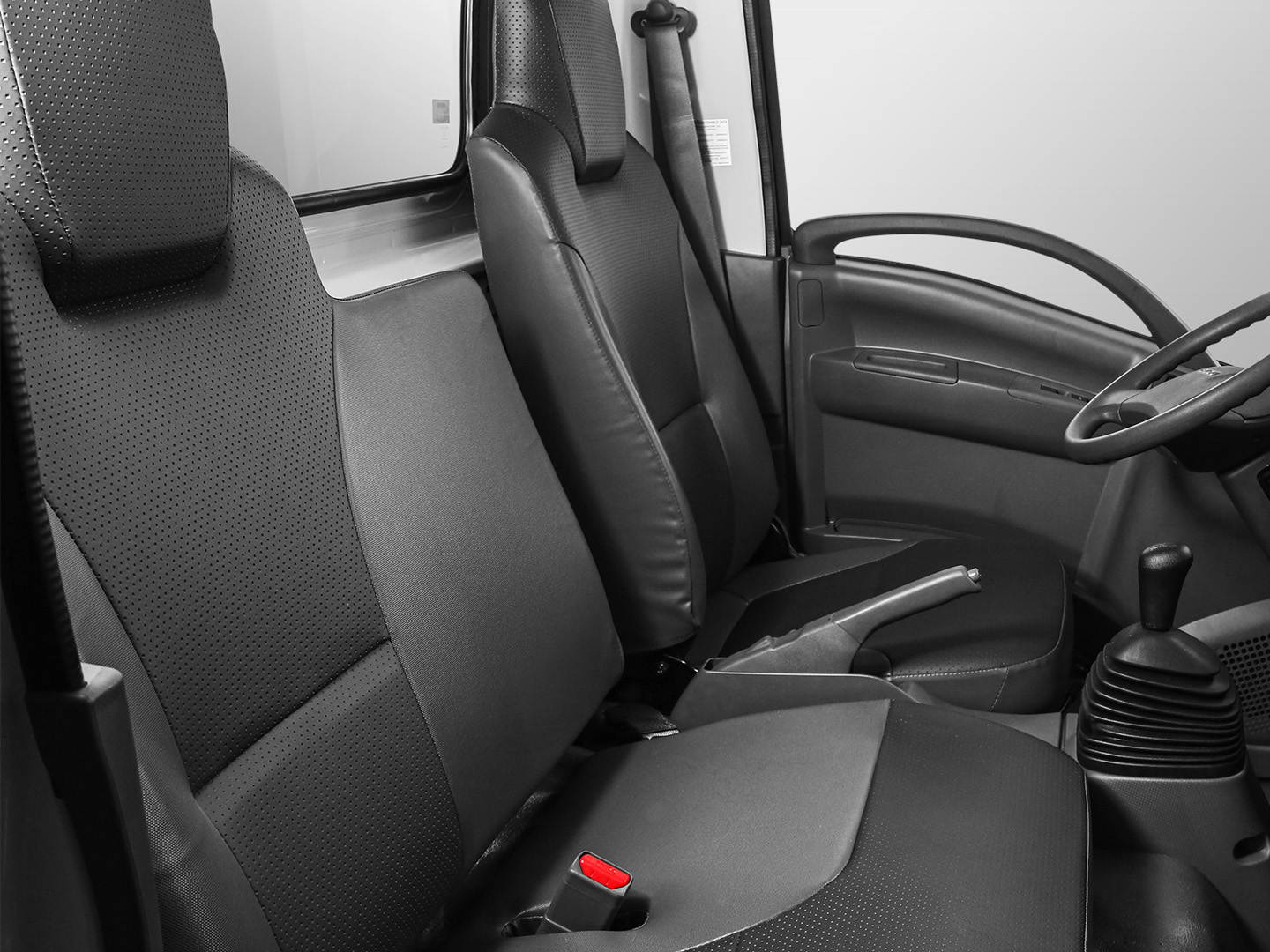

Interior

specification

MASS
DIMENSION
ENGINE & TRANSMISSION
BASIC SYSTEMS
BODY STRUCTURE
ACCESSORIES
Refrigeration systems
Gross vehicle mass Kg 4,990
Kerb mass Kg 2,595
Payload Kg 2,200
Number of seats Person 3
Overall Dimension (OAL x OW X OH) mm 5,490 x 1,950 x 2,850
Body’s external (LxWxH) mm 3,700 x 1,950 x 1,950
Body’s internal (LxWxH) mm 3,520 x 1,810 x 1,780
Model 4JH1E4NC

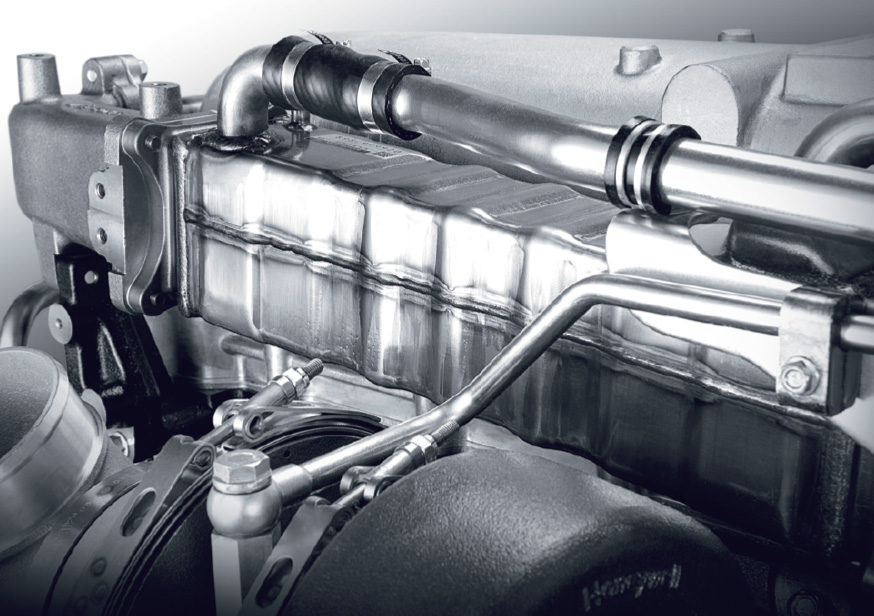

Systems Common rail, turbo-intercooler, EGR & DOC
Emission EURO 4
Max. power Ps(kW) / rpm 105 (77) / 3,200
Max. torque N.m(kgf.m) / rpm 230 (23) / 1,400 ~ 3,200
Transmission N.m(kgf.m) / rpm MSB5S
5 Forward & 1 Reverse
Steering system Recirculating ball with hydraulic assisted
Suspension system front – rear Dependent, leafspring, shock absorber
Brake system front – rear Drum, hydraulic with vacuum servo assistance, dual circuilt
Tire size front – rear 7.00 – 15 12PR
Generator 12V-90A
Interior and exterior panel skin Imported FRP-GRP
Panel Insulation XPS
Panel thickness Side wall: 65 mm
Front wall: 65 mm
Rear door: 65 mm
Roof wall: 80 mm
Floor panel: 85 mm
Floor Corrugated 304 stainless steel
Rear door frame Alloy Aluminum
Side door Standard
Rack Cab Guard & Ladder Standard
304-Stainless steel
Door handle 304-Stainless steel
Hinges Aluminium
Profiles (top, bottom, front) Aluminium
Corner-lights 04 lights
Mud guard and side fender Standard

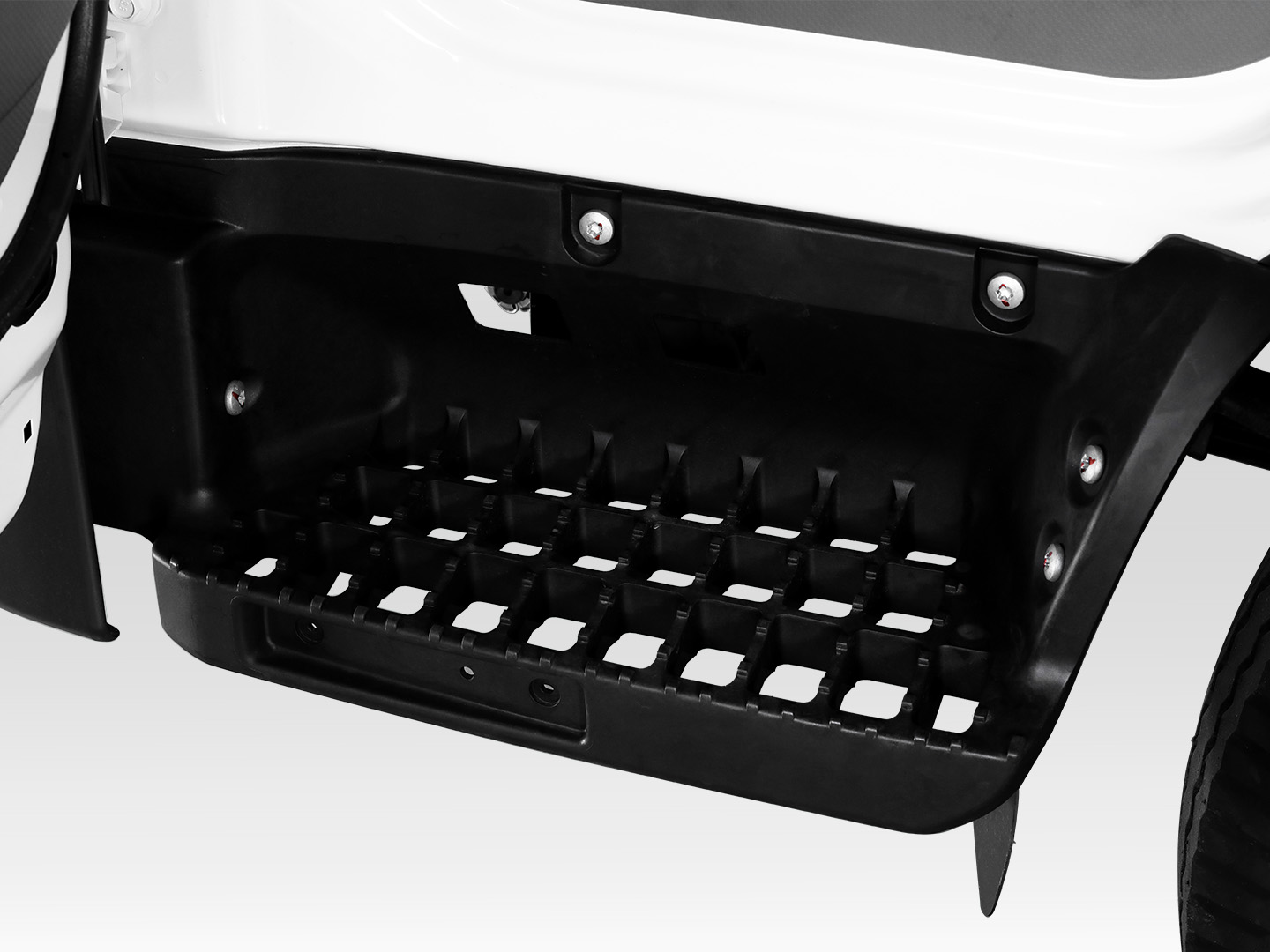

Rear step Standard
Side LED lights Standard (06 pcs)
Ceiling light Standard
Warning buzzer Standard
Refrigeration unit Thermal Master T-1400 (Korea)
Power 1,900 Walt
Gas type R404a
Temperature -18°C

*Specifications and equipment are subjects to change without prior notice
